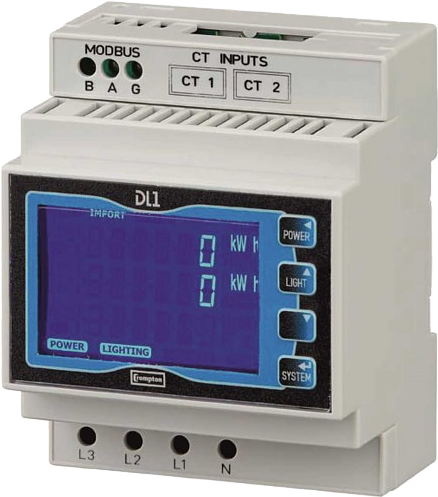

DL1 & TL1 Dual Load & Triple Load Metering

• Two 3-phase loads on a single meter
• DIN rail enclosure
• Two display operation
• True RMS measurement
• User programmable CT ratio
• Modbus RTU RS485 as standard

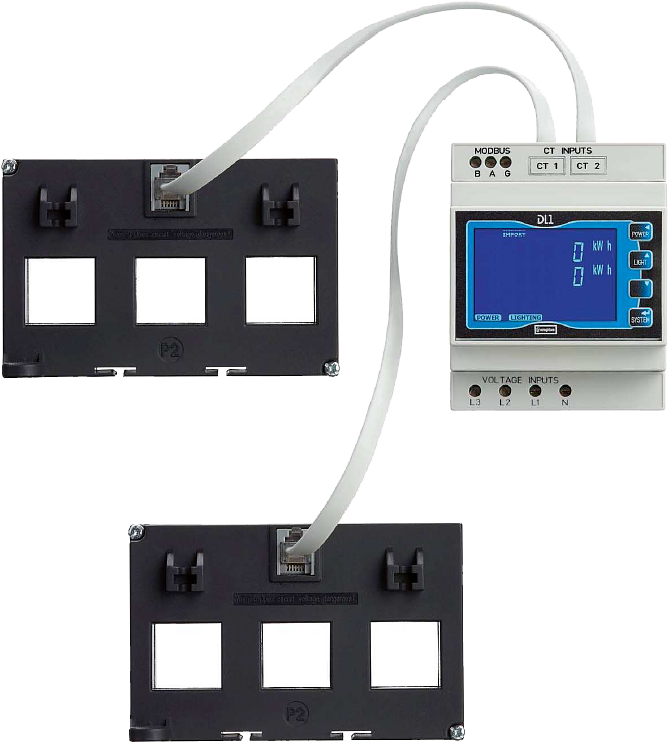

• RJ12 plug & socket CT connection
  CT inputs 100mA nominal

• Direct connect up to 45A
• Import/export kWh meter
• Modbus RTU RS485 comms
• Two pulsed outputs
• Display volts, amps, kW, kwh, kvarh etc.
• DIN rail mounted 17mm wide

Comms guide

User manual

• Direct connect up to 100A
• Import/export kWh meter
• Modbus RTU RS485 comms
• Two pulsed outputs
• Display volts, amps, kW, MD, kwh, kvarh etc.
• DIN rail mounted 36mm wide

Comms guide

User manual

• Direct connect up to 100A
• Import/export kWh meter
• Modbus RTU RS485 comms
• Two pulsed outputs
• Display volts, amps, kW, MD, kwh, kvarh etc.
• DIN rail mounted 72mm wide

Comms guide

User manual

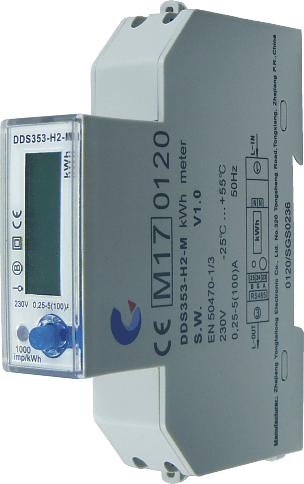

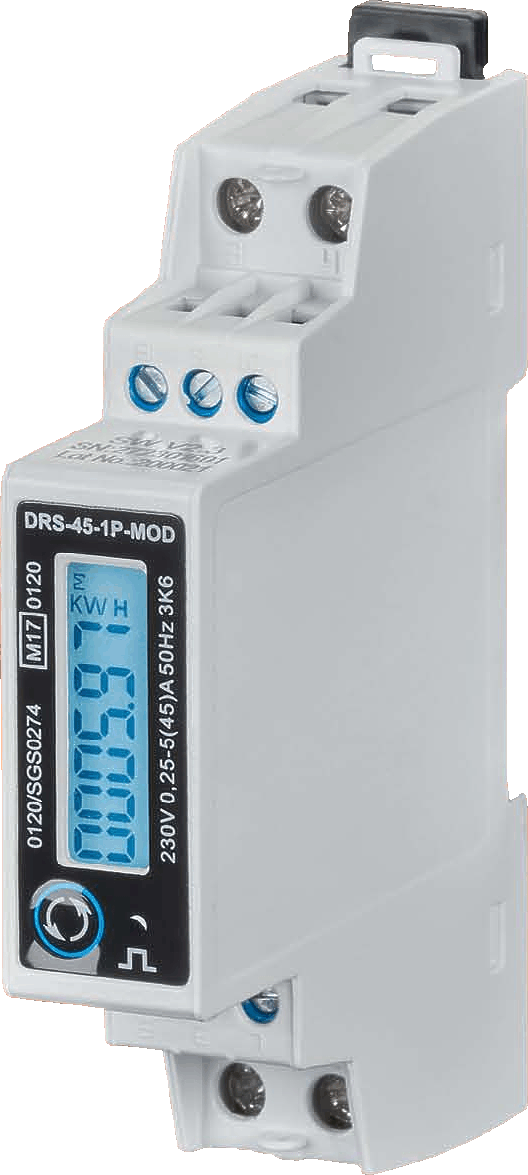

• Direct connect 40A
• Terminals suitable for 10mm² cable
• 7 digit LCD display, 0.01 kWh units
• S0 pulse output, 1000 imp/kWh
• Pulse width 80ms
• DIN rail mounted 17.5mm wide

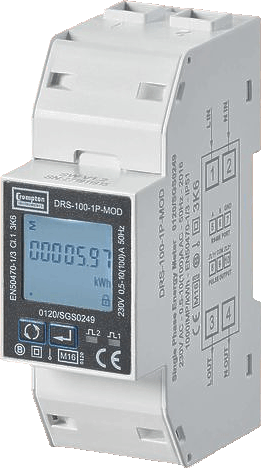

• Direct connect 100A
• Terminals suitable for 35mm² cable
• Backlit LCD display scrolling through parameters:
  • Active energy kWh
  • Reactive energy kvarh
  • Voltage V
  • Current A
  • Active power kW
  • Reactive power kvar
  • Apparent power kVA
  • Power factor PF
• Modbus RTU RS485 comms
• Optional energy import & energy export metering
• DIN rail mounted 18mm wide

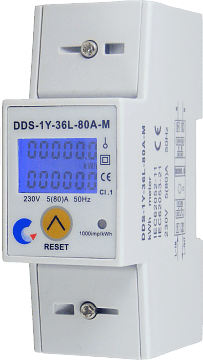

• Direct connect 80A
• Terminals for 25mm² cable, accepts up to 35mm²
• 6 digit LCD display, total 0.1 kWh units
• Second line re-settable 0.1 kWh units
• S0 pulse output, 1000 imp/kWh
• Pulse width 80ms
• MODBUS^® RS485 comms
  • Baud rate 9600, no parity, 8 bits, 1 stop bit
• DIN rail mounted 35mm wide

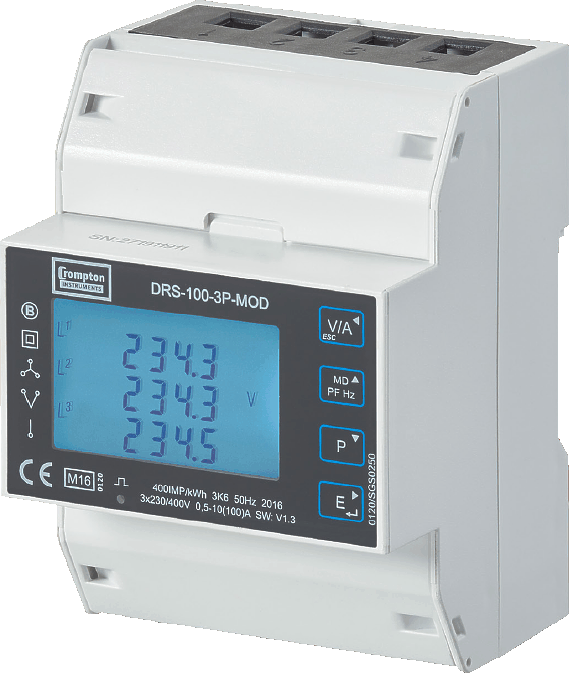

• Direct connect 100A
• Can be used for single phase, 2 phase or 3 phase metering
• Terminals for 35mm² cable, accepts up to 50mm²
• 7 digit LCD display, 0.1 kWh units
• LED indicates pulse output, 3x LEDs indicate current flow
• S0 pulse output, 800 imp/kWh
• Pulse width 80ms
• MODBUS^® RS485 comms
  • Baud rate 9600, no parity, 8 bits, 1 stop bit
• DIN rail mounted 122mm wide

• Direct connect up to 80A
• Accuracy 0.5%
• Meters import/export kWh, reactive energy & VA demand energy
• Real time metering of V, I, P, Q, S, PF & F
• Time of use, 4 tarrifs
• MODBUS RTU comms

Brochure

User manual

• Direct connect up to 80A
• Accuracy 0.5%
• Meters import/export kWh, reactive energy & VA demand energy
• Real time metering of V, I, P, Q, S, PF & F
• MODBUS RTU comms

Brochure

User manual

AcuRev 1300 EMC Declaration of Conformity

AcuRev 1300 Certificate of Compliance

• Replace conventional electromechanical power meters
• Internal 7 digit LCD display, 0.1 or 1kWh units
• Models for single phase, 2-phase & 3-phase systems
• Optocoupler pulse output
• Selectable CT ratio, 40/5A up to 5000/5A
• Optional MODBUS^® RS485 comms, LP-KWM

• Replace conventional electromechanical power meters
• Internal 7 digit counter, 0.1 or 1kWh units
• Pulse output, optocoupler isolated or dry contact relay
• 4M wide DIN rail mount

• Replace conventional electromechanical power meters
• Internal 7 digit counter, 0.1 or 1kWh units
• Models for single phase & 3-phase systems
• Optocoupler pulse or relay output

• Replace conventional electromechanical power meters
• Internal 7 digit counter, 0.1 or 1kWh units
• Optocoupler pulse output
• Integral CT
• For 60A circuits

• 1A/5A selectable or 333mV CT input options
• Accuracy 0.5%
• Meters import/export kWh, reactive energy & VA demand energy
• Real time metering of V, I, P, Q, S, PF & F
• Optional MODBUS RTU comms

Data sheet

• Designed and made in the UK
• DIN 96x96 standard format
• Import & export kWh & VAh
• Plug-in output module options
  • Isolated pulse outputs
  • RS485 MODBUS^® comms
  • Free TE DataX energy monitoring software available

• Large clear LCD display
• DIN 96x96 standard format
• Dual energy registers
• Accuracy better than Class 1
• Isolated pulse output
• IP52 protection
• RS485 MODBUS^® option

• Large clear LCD display
• DIN 96x96 standard format
• IP52 protection
• Accuracy better than Class 1
• Programmable CT and VT ratios
• Isolated pulse output
• RS485 MODBUS^® & dual tariff options

• Large clear LCD display
• DIN rail mount 6M width
• Fully user configurable
• Display select kWh & kW
• Accuracy better than Class 1
• Isolated pulse output
• RS485 MODBUS^®, maximum demand & dual tariff options
