Ultrasonic Proximity Sensors
Manufactured by microsonic.
|
|
microsonic is an acknowledged specialist in the field of ultrasonic sensors for industrial & commercial applications.
|
|
|
|
microsonic nero ultrasonic proximity sensor
Ultrasonic proximity switch in M18 plastic sleeve
with 4 detection ranges, 20mm to 1.3m.
- Axial beam or 90° angled head variants
- Teach-In function for setting of detect points
- PNP or NPN switching output
- 4-20mA or 0-10V analogue output
- 10-30V DC supply
|
|
|
|
|

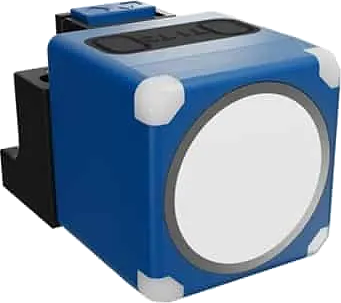

microsonic cube ultrasonic proximity sensors
Easy installation - QuickLock mounting bracket.
- Cubic miniature housing, 40mm x 40mm x 40mm
- Sensor head mountable in 5 positions
- 65mm to 5m sensor range
- Teach-In function for setting of detect points
- LinkControl software for ease of set up
- PNP or NPN switching output
- 4-20mA or 0-10V analogue output
- 9-30V DC supply
|
|
|
|
|
microsonic nano ultrasonic sensors
The smallest of its kind - M12 threaded sleeve just 55mm long.
- Design & mounting compatible with many inductive/capacitive sensors
- Teach-In function for setting of detect points
- LinkControl software for ease of set up
- 69μm resolution
- PNP or NPN switching output
- 4-20mA or 0-10V analogue output
- 10-30V DC supply
|
|
|
|
|
microsonic mic+ ultrasonic sensors
4 different output types & 5 detection ranges from 30mm to 8m.
- M30 nickel plated housing, M12 plug-in connector
- 0.18mm resolution, temperature compensation to maintain accuracy
- Teach-In function for setting of detection points
- LinkControl software for ease of set up
- 1 or 2 switched outputs, analogue 4-20mA or 0-10V options
- 12-30V DC supply
|
|
|
|
microsonic pico+ ultrasonic sensors
Compact sensors in an economical M18 plastic housing with IO-Link Interface.
- Three operating modes:
- Simple detect
- Two-way reflective
- Window mode
- Teach-In function for setting of detection points
- LinkControl software for ease of set up
- IP67 protection
- 0.2mm resolution, temperature compensation to maintain accuracy
- Ranges from 30mm to 1.3m
- 10-30V DC supply
|
|
|
|
|
microsonic zws ultrasonic sensors
Compact ultrasonic sensors in a cubical housing.
2 output versions & 3 detection ranges available.
- Three operating modes:
- Simple detect
- Two-way reflective
- Window mode
- Teach-In function for setting of detection points
- 0.20mm resolution, temperature compensation to maintain accuracy
- Ranges from 20mm to 700mm
- PNP NO or NC & 4-20mA output options
- 20-30V DC supply
|
|
|
|
esf-1/CDF microsonic ultrasonic label & splice sensor
The esf-1 fork sensor can detect labels reliably even at high label speeds.
- Compact fork format
- Three Teach-in methods
- Response time <300us
- Optional LinkControl for installation & commissioning
- 1 push pull output plus 1 PNP output
- M12 connector
- 20-30V DC supply
|
|
|
|
esf-1/CDF/A microsonic ultrasonic label & splice sensor with IO-Link
The esf-1 fork sensor can detect labels reliably even at high label speeds.
- Compact fork format

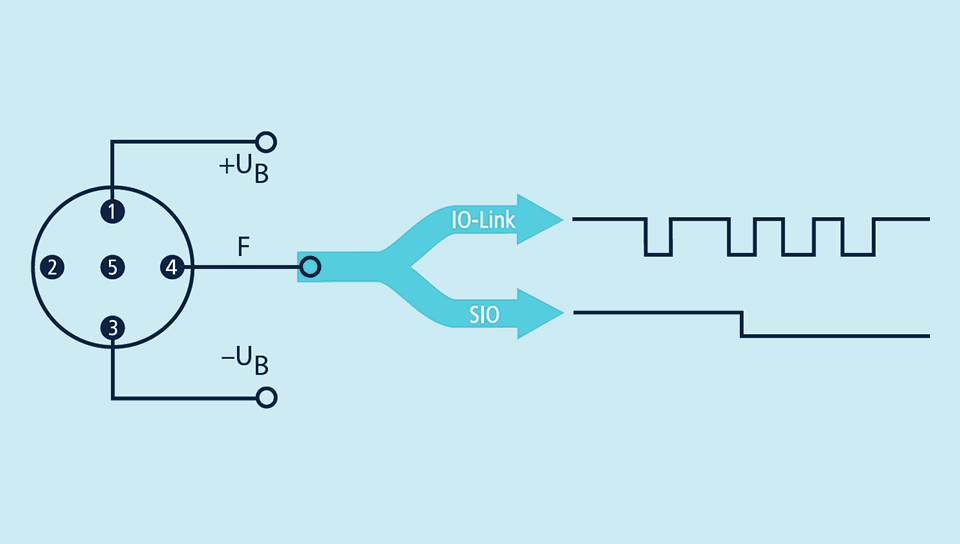

- With IO-Link interface, the new standard at fieldbus level
- Three Teach-in methods
- Response time <300us
- Optional LinkControl for installation & commissioning
- 1 push pull output plus 1 PNP output
- M12 connector
- 20-30V DC supply
|
|
|
|
|
microsonic ultrasonic edge detection sensors, bks-3/CIU & bks-6/12/CIU
Edge sensors that facilitate contact free web edge scanning of sound impermeable materials.
- Teach-in button for ease of set-up
- 30mm & 60mm fork width
- 0.01mm to 0.02mm resolution
- PNP or NPN plus analogue output options
- M12 connector
- 20-30V DC supply
|
|
|
|
microsonic ultrasonic edge detection sensors, bks+3/FIU
Edge sensors that facilitate contact free web edge scanning of sound impermeable materials.
- Teach-in button for ease of set-up
- 30mm & 60mm fork width
- IO-Link interface
- 0.01mm to 0.02mm resolution
- PNP or NPN plus analogue output options
- M12 connector
- 20-30V DC supply
|
|
|
|
|
microsonic LinkControl software & LCA-2 adaptor
Set up microsonic ultrasonic sensors from your laptop via USB.
The current measurement values of an ultrasonic sensor can be graphically visualised in the LinkControl software.
The LinkControl software works with the sensors of the mic+, mic, vnp, Ics, Ipc, ucs, sks and hps series.
The LinkCopy function allows the download of parameters from a sensor to the LCA-2 and the subsequent upload of these parameters to another sensor.
Sensor settings can be conveniently copied from one sensor to the other.
|

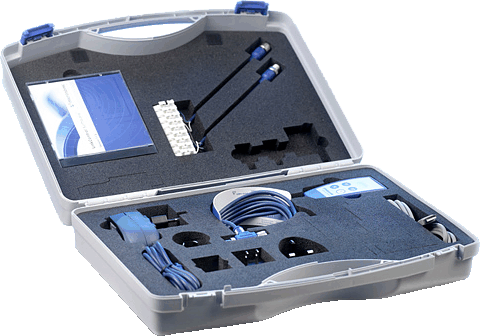

LCA-2 Kit
|
|
|
|
