Carrel Electrade - Machine Safety Products

MG D1

MAGNUS Safety Switch Control Unit

The MG D1 is a safety control unit for monitoring up to 8 Magnus safety switches.

Dimensions 94 x 75 x 25
2 x N/O safety relay outputs, 250VAC, 30VDC
Protection grade IP40 for housing, IP20 for terminals
24V DC supply

MG B 20

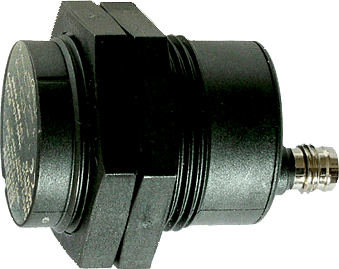

MG M 20

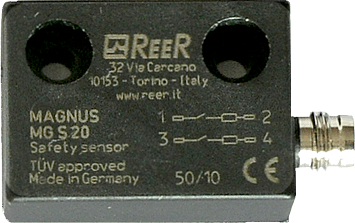

MG S 20

MAGNUS Magnetic Safety Switches

Magnetic sensors with coded magnets for tamper resistance.
Suitable for use in almost any industry, including food & beverage.

Compact sizing
Tough thermoplastic housing
2 x N/O solid state (<100mA max.) outputs
Protection grade IP67
24V DC supply

Brochure

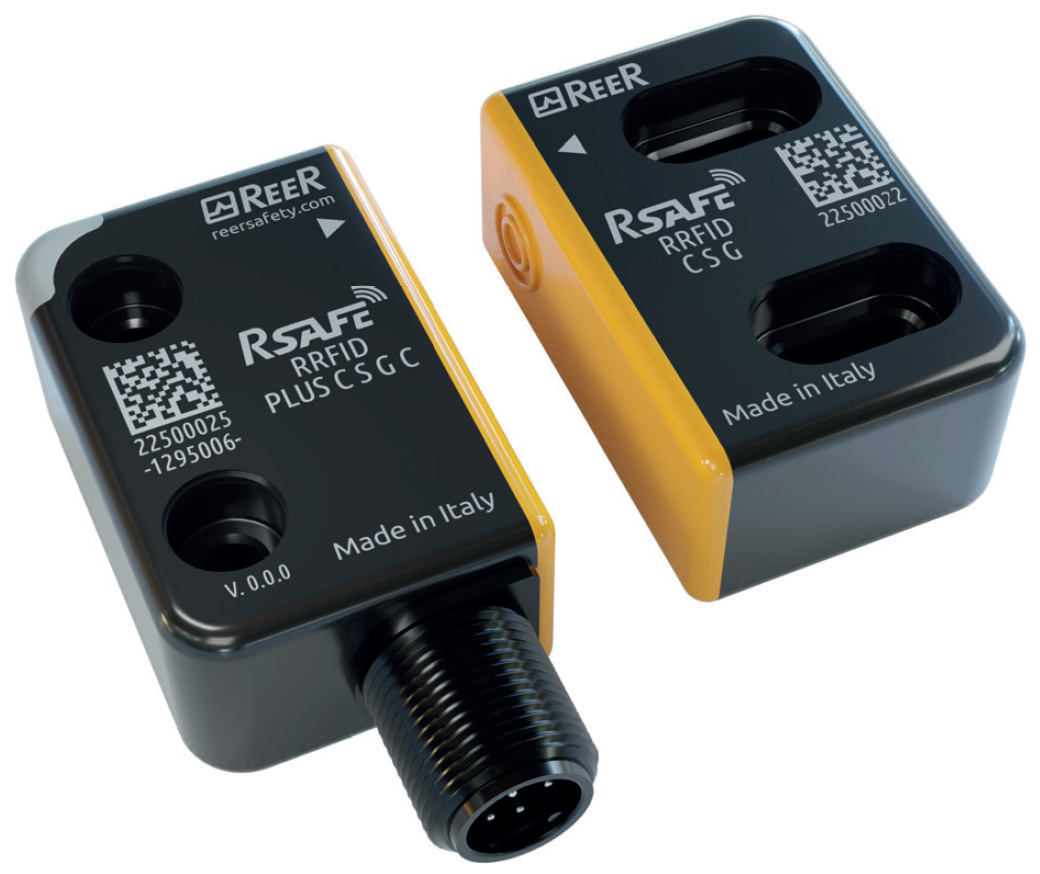

R-SAFE RFID Safety Switches

R-SAFE RFID next generation safety sensors for machine safety.
Compact versatile design, suitable for a wide range of safety applications.

Individual status reading without individual wiring
Cost effective - wear free for a longer product life
Tampering protection in accordance with EN ISO 14119
Protection grade IP67 & IP69K
M12 connector or pigtail with M12 connector. 1,3,5 or 10 metre cable

Introducing R-SAFE RFID video

Brochure

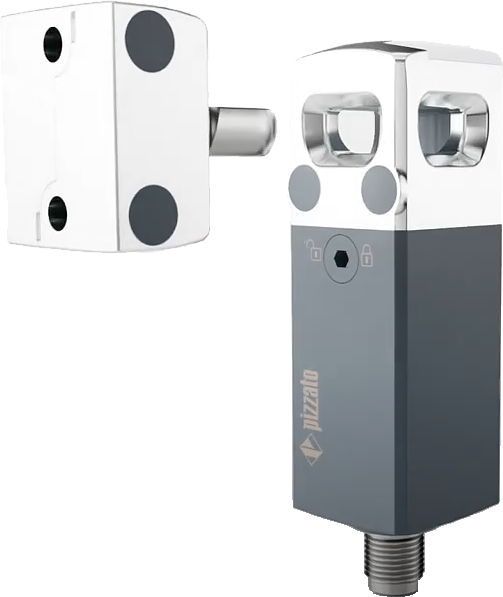

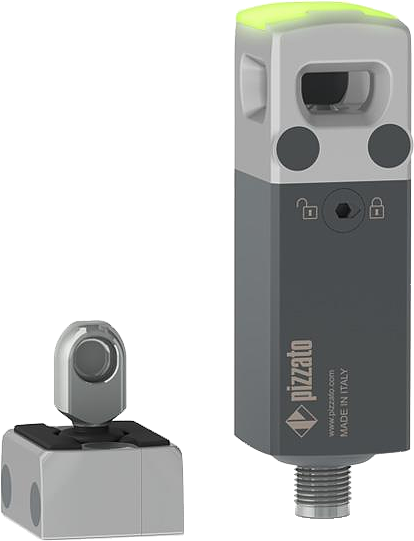

NX Series RFID safety switch with lock

The NX series safety switches with RFID & lock are the most compact on the market,
making them the perfect solution for use in small spaces.

Equipped with an illuminated RGB-LED cover indicating input/output states
Mounted using the two M5 screws with a 20mm hole spacing
RFID technology to detect the correct actuator
Equipped with an auxiliary Allen key release
Metal head ensures maximum resistance to impacts
Technopolymer body for low weight & flexibility
Protection grade IP67 & IP69K
M12 connector

NX series RFID safety switch with lock video

Brochure

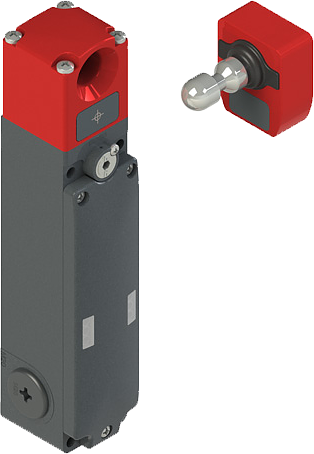

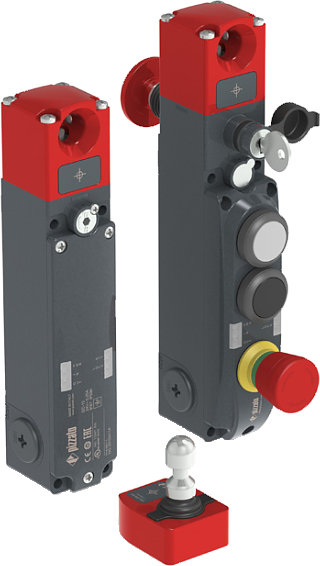

NG Series RFID safety switch with lock

The NG series safety switches with RFID & lock are the most compact on the market,
making them the perfect solution for use in small spaces.

Equipped with an illuminated RGB-LED cover indicating input/output states
Mounted using the two M5 screws with a 20mm hole spacing
RFID technology to detect the correct actuator
Equipped with an auxiliary Allen key release
Metal head ensures maximum resistance to impacts
Technopolymer body for low weight & flexibility
Protection grade IP67 & IP69K
M12 connector

NX series RFID safety switch with lock video

Brochure

MRFID-S Manual

MRFID-B Manual

MAGNUS RFID Safety Switches

Magnus RFID safety switches offer three different coding levels to provide flexibility for the most demanding applications.
Suitable for use in almost any industry, including food & beverage.

Available in 22mm or 78mm mounting packages with 5m cables
Sensing up to 8mm
2 x N/O solid state (<400mA max.) outputs
Protection grade IP67 & IP69K
24V DC supply

MRFID Wiring guide using the R-Safety relay.

Brochure

PI-SAFE series fail-safe inductive sensors

For applications which require a non-contact and safe detection of a metal object.

Fail safe inductive sensor
2x OSSD (output signal switching device) outputs, PNP active high
Environment IP65 & IP67, -25C to +70C
M12 4 pole connector
Supply 19.2V to 30Vdc

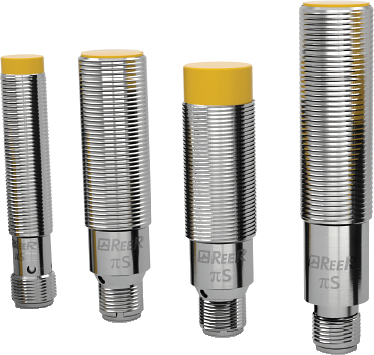

PI M12 NF M12 unshielded, 0.5-4mm sensing. S/S body
PI M18 F M18 shielded, 1-5mm sensing. S/S body
PI M18 FR M18 shielded, 1-10mm sensing. S/S body
PI M18 NF M18 unshielded, 1-8mm sensing. S/S body

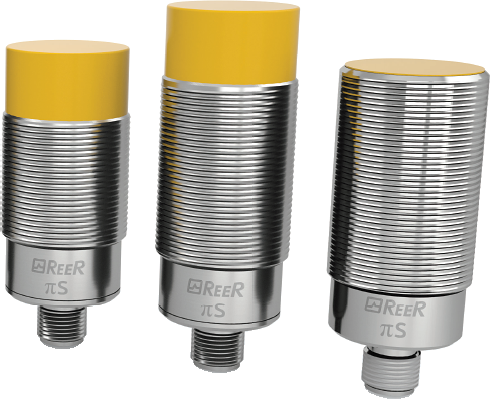

PI M30 F M30 shielded, 1-10mm sensing. S/S body
PI M30 NF M30 unshielded, 1-15mm sensing. S/S body
PI M30 NF K 40 x 40 square, 6-12mm sensing. S/S body
PI SQ F NF M18 unshielded, 10-15mm sensing. die cast body
PI SQ NF M18 unshielded, 4-20mm sensing. die cast body

Brochure

SAFELOCK Safety Switch with Guard Lock

The SAFELOCK safety switch is used to protect personnel by monitoring and interrupting the safety circuit depending on the position of the machine guard.

Horizontal or vertical approach direction
Electrical & mechanical locking/unlocking options
IP67 protection
24V AC/DC supply

Brochure

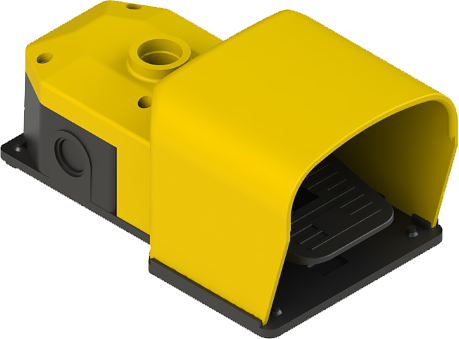

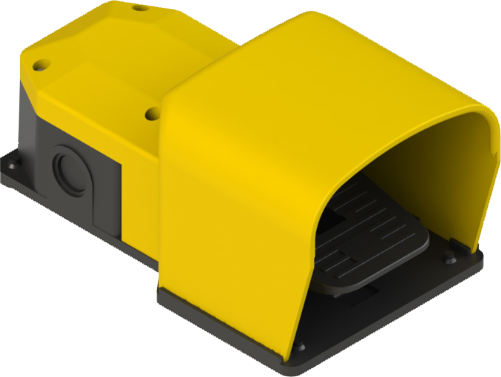

PX Series Foot Switches

Single foot switches with protection.
Technopolymer housing, IP53.

PX 10110-BM2 threaded conduit entry, 1NO+1NC with M25 hole for VF KIT31
PX 10110-M2 threaded conduit entry, 1NO+1NC
PX 10120-M2 threaded conduit entry, 1NO+1NC with pedal lock
PX 12040-bM2 threaded conduit entry, 2x1NO+1NC with M25 hole for VF KIT31
PX 12040-M2 threaded conduit entry, 2x1NO+1NC

Accessories
VF KIT20 Joining device for foot switches
VF KIT30 Joining device with M25 threaded hole
VF KIT31 Threaded aluminium pipe for foot switch, L=660 mm
VF KIT34 Emergency push button kit, 2NC
VF KIT50 Carrying handle kit
VF KIT60 Stabilizing plate for single foot switches
VF KIT51 Stabilizing plate for double foot switches
