Temperature Controllers
Temperature Controllers
Manufactured by Autonics Korea

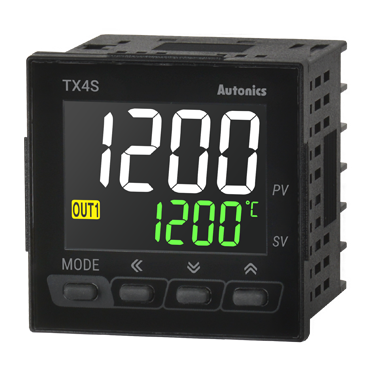

TX4S
Data sheet
TX4S Digital Temperature Controller
  • Large backlit LCD display with wide viewing angle
  • Display measured temperature & set point
  • Panel mount DIN 48x48mm
  • On/Off or PID control
  • SPST relay 250Vac 3A
  • Alarm relay output
  • Pt100, type K & type J input
  • Accuracy ±0.3% of full scale
  • Supply 100 to 240Vac 8VA max.

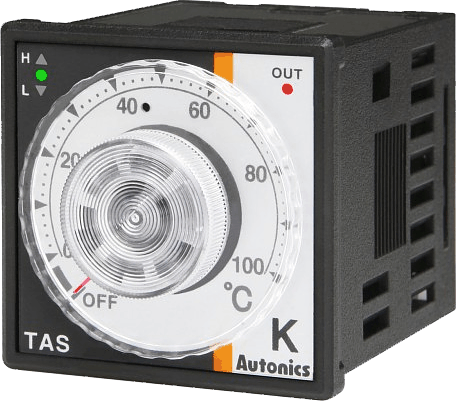

TAS
Data sheet
TAS Temperature Controller
  • Analogue dial setting type
  • 48x48mm 8 pin plug-in
  • On/Off or PID control
  • SPDT relay 250Vac 2A
  • Panel mount 48x48mm
  • Type K inputs, 100°C, 200°C, 400°C, 800°C
  • Type J input 200°C
  • Pt100 inputs, 100°C, 200°C
  • Accuracy ±2% of full scale
  • Supply 90 to 264Vac 2.2VA

T3S
Data sheet for new T3S
Data sheet for older T3S
T3S Digital Temperature Controller
  • 3 x 7 segment LED display
  • On/Off or proportional control
  • Single pole relay 250Vac 2A
  • Panel mount 48x48mm
  • Type K inputs, 399°C, 799°C, 999°C
  • Type J inputs, 199°C, 399°C, 499°C, 799°C
  • Pt100 inputs, 99.9°C, 199°C, 399°C
  • Accuracy ±1% of full scale
  • Supply 90 to 264Vac 5VA

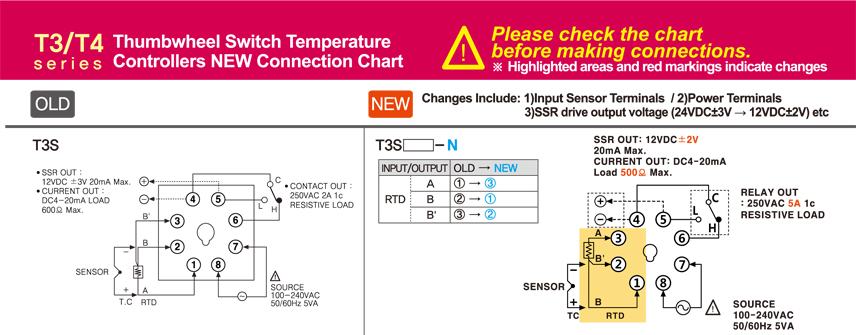

T3S changes

TC3YF
Data sheet.
TC3YF Digital Temperature Controller
Cooling/defrost temperature controller with NTC sensor
  • On/off control
  • Large high luminance LED display
  • Panel mount 72x36mm
  • Compressor, defrost & evaporation outputs
  • Relay output
  • Wide range power supply, 100 to 240Vac, <5VA

TC4Y
Data sheet
TC4Y Digital Temperature Controller
  • PID control algorithm
  • Large high luminance LED display
  • Panel mount 72x36mm
  • Pt100, type J or K thermocouple sensor
  • Accuracy ±0.5%
  • Relay & SSR output
  • Wide range power supply, 100 to 240Vac, <5VA

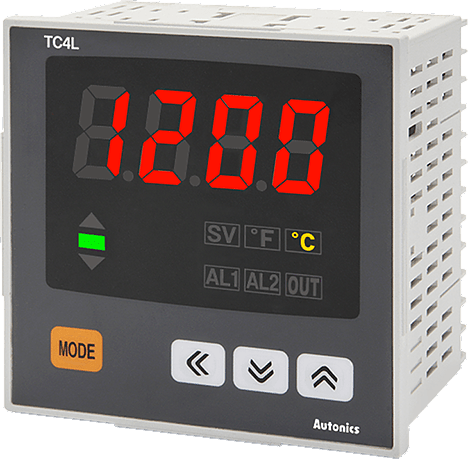

TC4L
Data sheet
Instructions
TC4L Digital Temperature Controller
  • PID control algorithm, 100ms high speed sampling
  • Large high luminance LED display
  • Panel mount 96x96mm
  • Pt100, type J or K thermocouple sensor
  • Accuracy ±0.5%
  • Relay & SSR output
  • Alarm output
  • Wide range power supply, 100 to 240Vac, <5VA

Temperature Controllers
Manufactured by Panasonic
KT7
KT7
KT4
KT4
Data sheet
KT7, KT4 Digital Temperature Controllers
  • Thermocouple, RTD, dc current or voltage input
  • PID, on/off control modes
  • Accuracy ±0.2% span
  • Relay or O/C output
  • 24V ac/dc & 100-240Vac supply options
  • KT7 DIN rail 22.5mm x 75mm, KT4 48mm x 48mm
  • Optional outputs for alarms, comms etc.

Temperature Relay
Manufactured by Comadan Produktion A/S Denmark
RM34
Data sheet
RM34 Pt100 Temperature Relay
  • AC supplies 24V, 115V and 230V ±10% 40-70Hz 3VA
  • DC supply 12 to 50V
  • 4 ranges from -50°C to +200°C
  • Built in cable resistance compensation
  • Adjustable set point and reaction delay
  • Relay release on cable short/break
  • Pt100 input, selectable ranges:
    -50 to +50°C, 0 to 100°C, 50 to 150°C, 100 to 200°C
  • 1 pole 8A 250Vac relay output
  • Standard 11 pin relay connection

ZB11 base

Motor Thermal Protection Relays
Manufactured by Crouzet
ETM
Data sheet
ETM, ETM2 & ETM22 Motor Temperature Monitoring Relays
  • PTC input
  • Supplies 24V ac/dc, 240Vac
  • DIN rail mount, 22.5mm wide
  • Relay 8A 440Vac
  • ETM - 1 N/O contact, ETM2 1 changeover, ETM22 2 changeover
  • Auto reset ETM, remote & local push button reset ETM2 & ETM22
  • Test button ETM2 & ETM22
  • -20°C to +60°C operation

Thermistor Temperature Sensing Relays
Manufactured by Finder

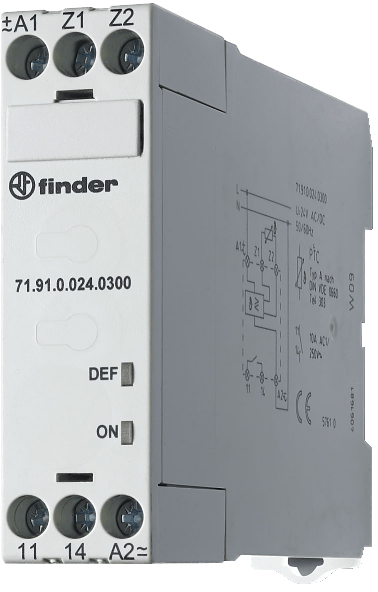

71.91
Data sheet
Finder 71.91 Thermistor Temperature Monitoring Relay
  • 24V AC/DC or 240Vac supply
  • Temperature detection with PTC
  • Positive safety logic, make contact opens on error
  • PTC short circuit or open circuit detection
  • Single pole NO contact, 10A 250Vac
  • DIN rail mounted, 35mm wide

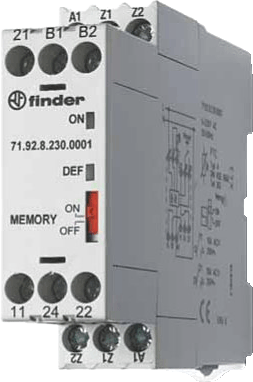

71.92
Data sheet
Finder 71.92 Thermistor Temperature Monitoring Relay
  • 24V AC/DC or 240Vac supply
  • Temperature detection with PTC
  • Positive safety logic, make contact opens on error
  • PTC short circuit or open circuit detection
  • Fault memory selectable
  • Double pole CO contact, 10A 250Vac
  • DIN rail mounted, 35mm wide

Thermistor Temperature Sensing Relays
Supplied by Crompton Instruments

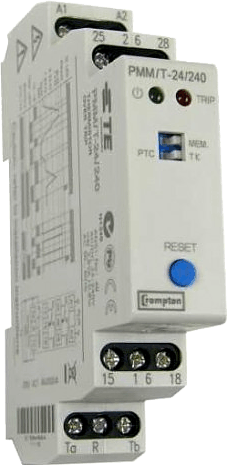

PMM-T
Data sheet
Crompton Instruments PMM-T Thermistor Trip Relay
For motor over heating protection
  • 24V-240V ac/dc supply
  • Temperature detection with PTC or TK input
  • Positive safety logic, make contact opens on error
  • PTC short circuit or open circuit detection
  • Double pole CO contact, 8A 250Vac
  • DIN rail mounted, 17.6mm wide
Instructions

Level Control Relay
Manufactured by Carrel Electrade
R-LVL
Data sheet
R-LVL Level Control Relay
For monitoring & controlling the level of conductive liquids.
  • Up to 4 sensing levels
  • Pump fill, pump empty or combined pump fill & empty
  • Optional low level or high level alarm(s)
  • Low level AC voltage probe excitation
  • Adjustable sensitivity or auto adjustment option
  • Three 2 pole 10A 250Vac relay outputs
  • Supply 230Vac, 110Vac, 24Vac. 3VA

Level Control Relay
Manufactured by Comadan Produktion A/S Denmark
RL10
Data sheet
RL10 Level Sensing Relay
The RL10 monitors & controls the level of conductive liquids.
  • AC supplies 24V, 115V and 230V 2.5VA
  • DC supplies 12 to 250V
  • 1 or 2 sensing levels
  • Selectable high, low or high and low
  • Adjustable set point and reaction delay
  • Adjustable sensitivity control
  • 2 pole 5A 250Vac relay output
  • Standard 11 pin relay connection

ZB11 base

Level Control Relays
Manufactured by Crouzet
ENR
Data sheet
ENR Level Control Relay
  • Conductive liquids, resistive probe input
  • Controls filling up or down
  • Supplies 24Vac & 240Vac
  • DIN rail mount, 22.5mm wide
  • Relay 8A 240Vac
  • -20°C to +50°C operation

HNM
Data sheet
HNM Level Control Relay
  • Conductive liquids, resistive probe input
  • Controls filling up or down
  • Adjustable delay, 0.1 - 5s
  • Supply 24V-240V ac/dc
  • DIN rail mount, 35mm wide
  • Relay 5A 240Vac
  • -20°C to +50°C operation

HNE
Data sheet
HNE Level Control Relay
  • Conductive liquids, discrete sensor input
  • Controls filling up or down
  • Adjustable delay, 0.1 - 5s
  • Supply 24V-240V ac/dc
  • DIN rail mount, 35mm wide
  • Relay 5A 240Vac
  • -20°C to +50°C operation

Level Control Relay
Manufactured by Finder
72.01
Data sheet
72.01 Level Control Relay
  • Conductive liquids, resistive probe input
  • Controls filling up or down
  • Adjustable sensitivity
  • Supply options: 230/240Vac & 24Vdc
  • DIN rail mount, 35mm wide
  • Relay SPDT, 16A 250Vac
  • -20°C to +60°C operation

Finder 72.01 Accessories
072.11
072.11
Floor water sensor

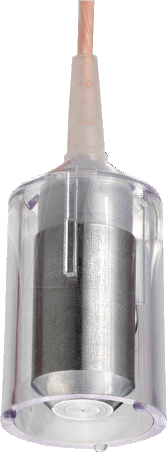

072.01
072.01.xx
Suspended electrode
6m or 15m cable
072.53
072.53
Electrode holder
072.50.3
072.50.3
Electrode separator

72 Series Float Switches
Manufactured by Finder

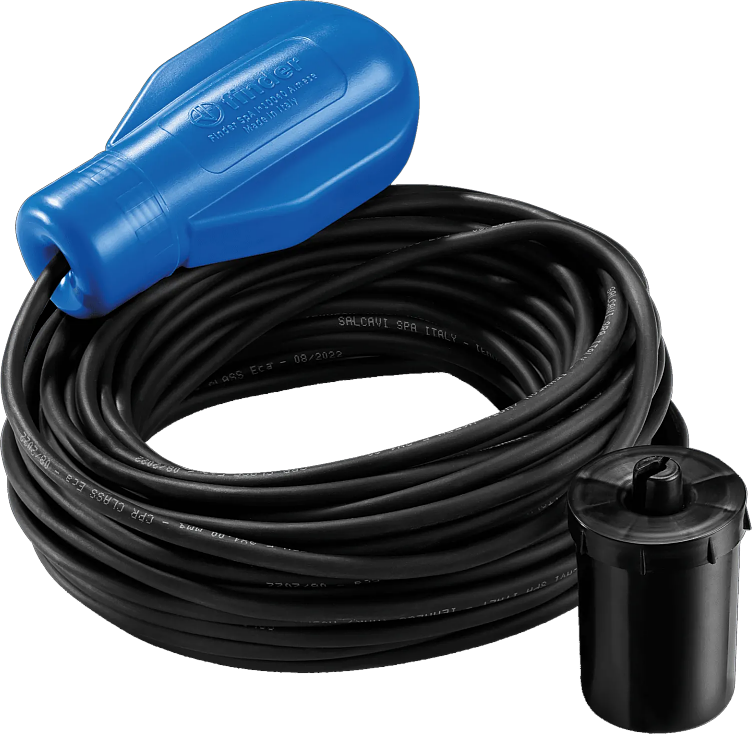

72.A1
Data sheet
72.A1 Float Switch
Float switch for grey water.
Suitable for automatic pumping, professional plumbing systems and waste water.
Complete with counter weight.
  • 5, 10m or 20m cable
  • Body material polypropylene, cable H05 RN F
  • Protection IP68
  • Contacts CO(SPDT) 250Vac, 10A resistive 8A inductive
  • Max. pressure 10 BAR
  • Max. liquid temperature +45°C

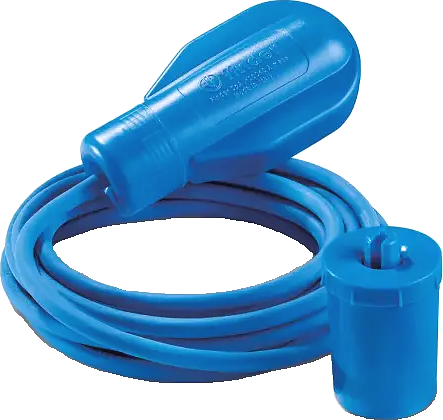

72.A1-ACS
Data sheet
72.A1.ACS Float Switch
Float switch with 2 watertight chambers, suitable for liquid foodstuffs.
Made from non-toxic materials suitable for permanent immersion in drinking water.
Cable and plastics ACS certified.
Complete with counter weight.
  • 5, 10m or 20m cable
  • Body material polypropylene
  • Protection IP68
  • Contacts CO(SPDT) 250Vac, 10A resistive 8A inductive
  • Max. pressure 10 BAR
  • Max. liquid temperature +45°C

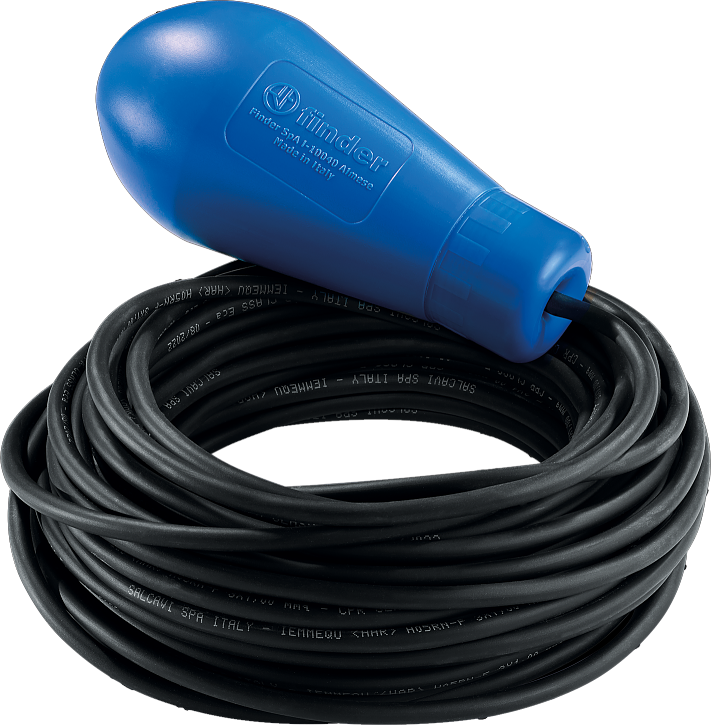

72.B1
Data sheet
72.B1 Float Switch
Float switch for black water systems, drainage plants and pumping stations.
Supplied with fixing kit.
  • 10m or 20m cable
  • Body material polypropylene, cable H05 RN F
  • Protection IP68
  • Contacts CO(SPDT) 250Vac, 10A resistive 8A inductive
  • Max. pressure 10 BAR
  • Max. liquid temperature +45°C

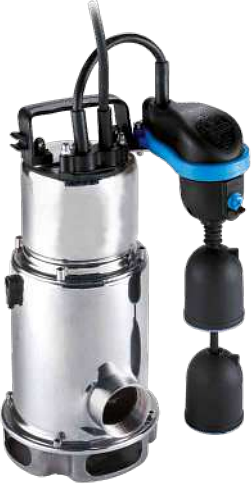

72.C1
Data sheet
72.C1 Float Switch
Space saving float switch for liquid level regulation
  • 4-wire cable for filling or emptying applications
  • 2m neoprene cable
  • Protection IP68
  • Contacts CO(SPDT) 250Vac, 10A resistive 8A inductive
  • Minimum switching load 1200mW (12V 100mA)
  • Breaking capacity DC1 6A 30V DC
  • Max. liquid temperature +50°C

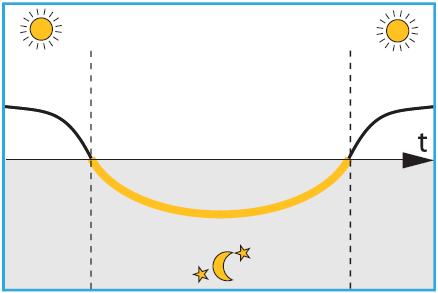

Light Dependent Relays
Manufactured by Finder
11.01
Data sheet
11.01 Light Dependent Relay
  • Separate photoelectric sensor
  • Zero hysteresis for energy saving
  • Range from 1 to 1000 Lux in 2 ranges
  • Supply 230Vac
  • DIN rail mount, 35mm wide
  • Relay SPDT, 16A 250Vac
  • -20°C to +50°C operation

Light sensor


11.31
Data sheet
11.31 Light Dependent Relay
  • External photoelectric sensor
  • Adjustable sensitivity 1-100 Lux
  • Supply 230Vac & 24V AC/DC
  • DIN rail mount, 17.5mm wide
  • Relay NO 16A 250Vac
  • -20°C to +50°C operation

Light sensor


11.42
Data sheet
11.42 Light Dependent Relay
  • Two independant outputs with individual Lux settings
  • Separate photoelectric sensor
  • Standard range 1-80 Lux, high range 20-1000 Lux
  • Supply 230Vac
  • DIN rail mount, 35mm wide
  • One CO & one NO relay, 12A 250Vac
  • -20°C to +50°C operation

IP65 light sensor
for 11.42 & 11.91

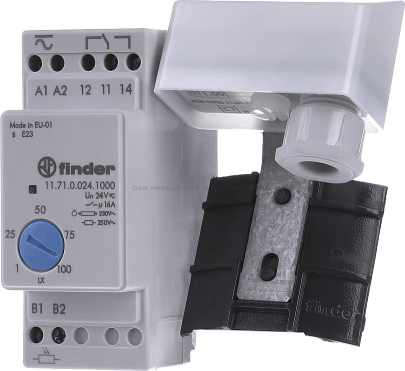

11.71
Data sheet
11.71 Daylight Switch
  • Complete with sensor
  • Adjustable Lux setting, 1-100 Lux (switch on)
  • Supplies 12V & 24V AD/DC
  • DIN rail mount, 35mm wide
  • CO 16A 250Vac contact
  • -20°C to +60°C operation

11.91
Data sheet
11.91 Light Dependent Relay Plus Time Switch
  • Daily time switch, programmable to inhibit output
  • Sensitivity adjustment 2-150 Lux
  • LCD status indication, set-up & programming
  • Supply 230Vac
  • DIN rail mount, 35mm wide
  • Relay CO 16A 250Vac
  • -20°C to +50°C operation

10.41
Data sheet
10.41 Light Dependent Relay
  • Pole or surface mount
  • Adjustable 1 to 50 Lux
  • Supply 230Vac
  • Relay NO, 12A 230Vac
  • -30°C to +70°C operation
  • IP54 protection

10.61
Data sheet
10.61 Daylight Switch
  • 230Vac supply
  • Fixed sensitivity, 20 Lux +/-20%
  • Supply 230Vac
  • Relay NO, 16A 230Vac
  • -30°C to +70°C operation
  • IP54 protection


18.01 PIR sensor


18.11 PIR sensor

Finder 18 Series Infra-Red (PIR) Movement Detectors
Detect body heat & movement to control lighting etc.
  • Models for internal & external applications
  • Ceiling, flush mount & wall mounted models
  • Wide surveillance angle
  • Adjustable ambient light threshold
  • Adjustable light on time
  • NO 10A 230Vac contacts
  • Models:
    • 18.01-230 - IP40 internal use
    • 18.11-230 - IP54 external use
    • 18.21-230 - internal ceiling surface mount
    • 18.31-230 - internal ceiling recessed mounting

18.21 PIR sensor


18.31 PIR sensor


Frequency & Tachometer Relays
Manufactured by Comadan Produktion A/S Denmark
RF20
Data sheet
RF20 Frequency Relay
  • AC supplies 24V, 115V and 230V 2.5VA
  • Selectable 50Hz/60Hz nominal
  • Adjustable bandwidth, 1Hz to 10Hz
  • Selectable delay 0.1sec. or 1 sec.
  • Double pole changeover 5A 250Vac relay output
  • Standard 11 pin relay connection

ZB11 base

RR10
Data sheet
RR10 Tachometer Relay
  • AC supplies 24V, 115V and 230V 2.5VA
  • DC supplies 12 to 250V
  • 10 to 20000 rpm in 3 ranges
  • Adjustable start delay from 0 to 10 secs.
  • Relay latch function
  • Universal pulse inputs for contact or transistor
  • 1 pole 8A 250Vac relay output
  • Standard 11 pin relay connection

ZB11 base

Frequency Monitoring Relays
From by Crompton Instruments
250 Series
Data sheet
Crompton 250 Series 3-Phase Monitoring Relays
252-PHU Under frequency, 240/400Vac, DPDT.
252-PHO Over frequency, 240/400Vac, DPDT.
253-PHD Under & over frequency, 240/400Vac, DPDT.

Frequency Relay
Manufactured by Crouzet
HHZ
Data sheet
HHZ Over & Under Frequency Relay
  • 50Hz or 60Hz
  • 120-277Vac
  • Power 6VA
  • Adjustable delay
  • Adjustable under & over thresholds
  • Two independent relays, 250Vac 5A
  • DIN rail mount, 35mm wide
  • -20°C to + 50°C operation

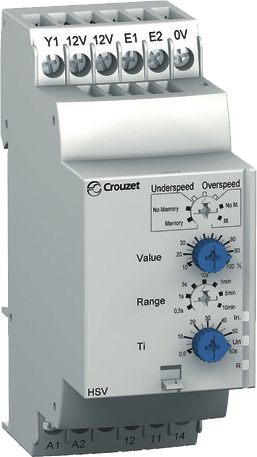

HSV
Data sheet
HSV Speed Sensing Relay
  • Control of over speed or under speed
  • Optional latching/memory
  • Supply 24-240V ac/dc
  • Power 5VA/3W
  • 3 wire PNP, NPN or NAMUR sensors
  • Adjustable under or over thresholds
  • Single pole CO relay, 250Vac 5A
  • DIN rail mount, 35mm wide
  • -20°C to + 50°C operation
NZ flag
Carrel Electrade Limited
Proudly 100% New Zealand owned and operated.
