Proximity Sensors

Carrel Electrade Technical Guide for Sensors

Carrel Electrade Proximity Sensors Flyer

Carrel Electrade PNP to NPN & NPN to PNP Converters

New Pico+ Ultrasonic Sensors

The Ultimate Guide to M12 Connector Pinout, Colour Code & Wiring Diagram

Inductive Proximity Sensors

	Datalogic Cylindrical 3-Wire Inductive Proximity Sensors IS-08 Series Inductive Proximity Sensors Cylindrical housing, M8 Nickel/brass construction IP67 protection Sensing range options from 1.5mm & 2mm 2m PVC cable 3 wire low voltage dc supply options NPN or PNP output, NO or NC

	Datalogic Long Range 3-Wire Inductive Proximity Sensors IS-12 Series Inductive Proximity Sensors IS-18 Series Inductive Proximity Sensors IS-30 Series Inductive Proximity Sensors Cylindrical housing, M12 to M30 Nickel/brass construction IP67 protection Sensing range options from 2mm to 20mm M12 plug-in connector or 2m cable 3 wire low voltage dc supply NPN or PNP output, NO or NC

	Datalogic 2-Wire Inductive Proximity Sensors IS-12-A15, IS-18-A15 & IS-30-A15 2-Wire Inductive Proximity Sensors Cylindrical housing, M12, M18 & M30 Nickel/brass construction IP67 protection Sensing range options from 2mm, 5mm & 10mm M12 plug-in connector or 2m cable 2 wire 24-230Vac supply

	Panasonic GX-M(K) Series 3-Wire Inductive Proximity Sensors Cylindrical housing, M12, M18 & M30 Nickel plated brass construction, shielded (GX-M) or unshielded (GX-MK) Sensing range: M12 shielded - 2mm M18 shielded - 5mm M30 shielded - 10mm M12 unshielded - 7mm M18 unshielded - 12mm M30 unshielded - 22mm IP68/IP69K protection 3 wire low voltage 10-30Vdc supply, 2m cable NPN or PNP output, NO or NC options, short circuit protection

	Panasonic GX-U Series 2-Wire Inductive Proximity Sensors Cylindrical housing M8 to M30 Stainless steel or nickel/brass construction IP67 protection 2 wire low voltage dc supplies NO or NC options

	Panasonic GXL Series Micro Size Inductive Proximity Sensors Flat pack housing, top or front sensing IP67 protection 2 wire & 3 wire low voltage dc supplies 3 wire NPN & PNP options

	Rechner IAS Series Inductive Proximity Sensors Cylindrical housing, M8 to M30 Stainless steel or nickel/brass construction IP67 protection Sensing range options from 1mm to 15mm 3 wire or 4 wire 2m cable, or plug in option Low voltage dc supplies, short circuit protection NPN or PNP output, NO or NC (4 wire NO & NC outputs)

Capacitive Proximity Sensors

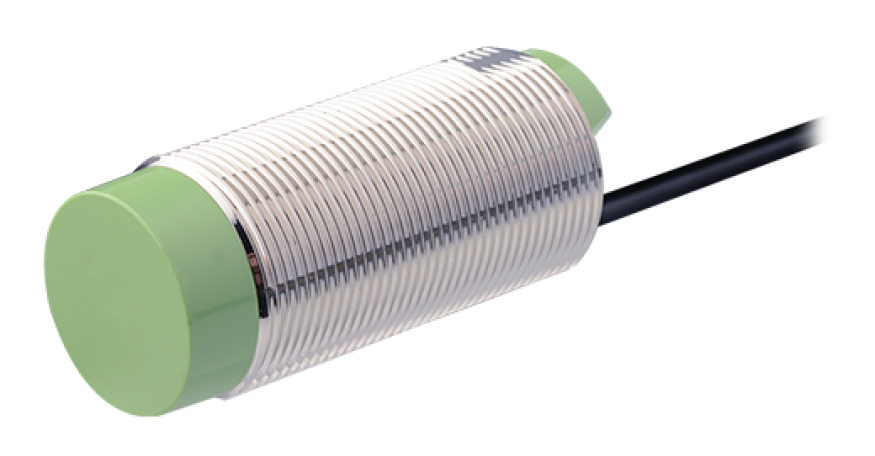

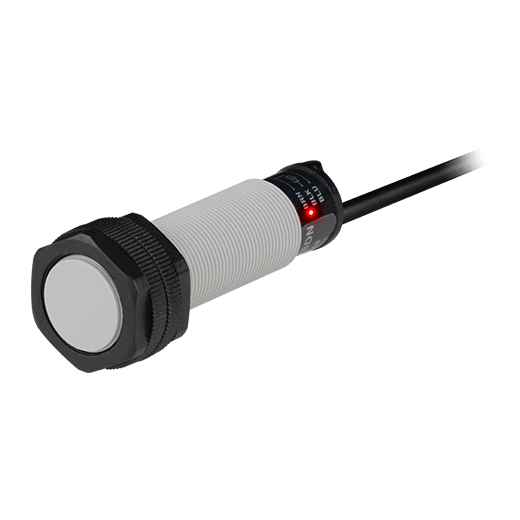

	Autonics CR Series Capacitive Proximity Sensors Cylindrical capacitive proximity sensors. Available in DC 3-wire & AC 2-wire types. 2-wire 100-240Vac 50/60Hz supply (85-264Vac operating) 3-wire 12-24Vdc supply (10-30Vdc operating) Sensitivity adjuster & operation LED. CR18 IP66 rated, sensing distance 8mm. CR18-8AC - M18 85-264Vac 2 wire N/C output CR18-8AO - M18 85-264Vac 2 wire N/O output CR18-8DN - M18 10-30Vdc 3 wire NPN output CR18-8DP - M18 10-30Vdc 3 wire PNP output CR30 IP65 rated, sensing distance 15mm. CR18-8AC - M18 85-264Vac 2 wire N/C output CR30-15AO - M30 85-264Vac 2 wire N/O output CR30-15DN - M30 10-30Vdc 3 wire NPN output CR30-15DP - M30 10-30Vdc 3 wire PNP output

	Rechner NormLine Capacitive Proximity Sensors Low cost capacitive proximity sensors with LED indication. KAS-70 - 3/4 wire DC NPN, KAS-80 - 3/4 wire DC PNP, KAS-90 - 2 wire AC/DC. Cylindrical housing M18 to M30 2m cable, plug-in version on request IP67 protection Adjustable sensitivity NO or NC options, 4 wire antivalent (NO & NC)

	Rechner Duo Capacitive Proximity Sensors KAS-1000 2 wire 20-250V AC/DC. Cylindrical housing M32 2m cable IP67 protection Adjustable sensitivity, 2 to 20mm Selectable NO or NC output

	Rechner SMART PADDLE Capacitive Sensors Low cost capacitive level sensor, pre-adjusted for the detection of bulk liquids, powders & other materials. The SMART PADDLE has no moving parts & is not subject wear & tear. FDA conformant to be food safe. KAS70-P50-A-K-G1/2 4 wire NPN output. KAS80-P50-A-K-G1/2 4 wire PNP output. 10 - 30Vdc supply IP67 protection

Ultrasonic Proximity Sensors

Ultrasonic sensors use the echo of high-frequency sound pulses to compute the distance to the target object.

	microsonic nero ultrasonic sensors Ultrasonic proximity switch in M18 plastic sleeve. Detection ranges, 20mm to 1.3m. Design & mounting compatible with many inductive/capacitive sensors Teach-In function for setting of detect points PNP/NPN switching, 4-20mA/0-10V output options 10-30V DC supply

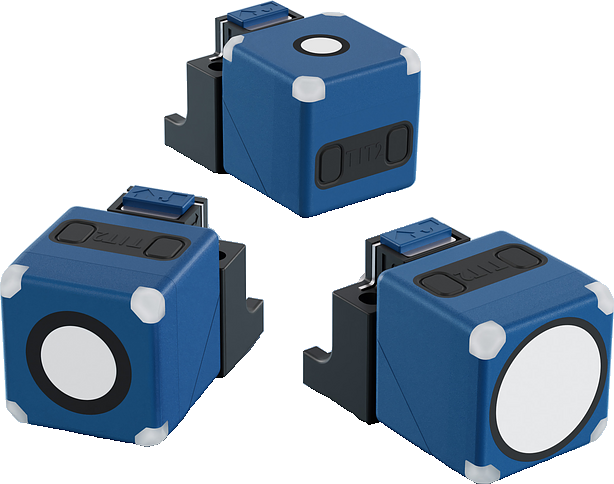

	microsonic cube ultrasonic sensors Ultrasonic proximity switch, cubic housing 40mm x 40mm x 40mm. Detection ranges, 65mm to 5m. Sensor head mountable in 5 positions Teach-In function for setting of detect points PNP/NPN switching, 4-20mA/0-10V output options 10-30V DC supply

	microsonic nano ultrasonic sensors The smallest of its kind - M12 threaded sleeve just 55mm long. Design & mounting compatible with many inductive/capacitive sensors Teach-In function for setting of detect points PNP/NPN switching, 4-20mA/0-10V output options 10-30V DC supply

	microsonic mic+ ultrasonic sensors 4 different output types & 5 detection ranges from 30mm to 8m. M30 nickel plated housing, M12 plug-in connector Teach-In function for setting of detect points 1 or 2 switched outputs, analogue 4-20mA or 0-10V options 12-30V DC supply

	microsonic pico+ ultrasonic sensors Compact sensors in an economical M18 plastic housing with IO-Link Interface. Three operating modes, simple detect, two-way reflective & window Teach-In function for setting of detect points IP67 protection Ranges from 30mm to 1.3m 10-30V DC supply

	microsonic zws ultrasonic sensors Compact ultrasonic sensors in a cubical housing. 2 output versions & 3 detection ranges available. Three operating modes, simple detect, two-way reflective & window Teach-In function for setting of detect points Ranges from 20mm to 700mm PNP NO or NC & 4-20mA output options 20-30V DC supply

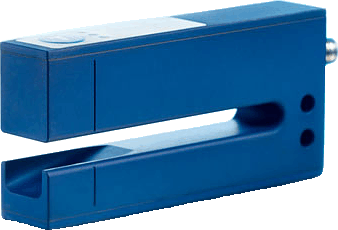

	microsonic esf-1/CDF ultrasonic label & splice sensor Compact ultrasonic sensors in a fork housing. Teach-In function for setting up Fast response time 1 push pull output plus 1 PNP output 20-30V DC supply

	microsonic esf-1/CDF/A ultrasonic label & splice sensor with IO-Link Compact ultrasonic sensors in a fork housing. Teach-In function for setting up IO-Link interface Fast response time 1 push pull output plus 1 PNP output 20-30V DC supply

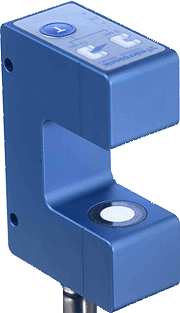

	microsonic bks-3/CIU & bks-6/12/CIU ultrasonic edge detection sensors Compact ultrasonic sensors in a fork housing. Teach-In function for setting up 30mm & 60mm fork width PNP or NPN plus analogue output options 20-30V DC supply

	microsonic bks+3/FIU ultrasonic edge detection sensors Compact ultrasonic sensors in a fork housing. Teach-In function for setting up 30mm & 60mm fork width IO-Link interface PNP or NPN plus analogue output options 20-30V DC supply

Proximity Sensor Accessories

Rechner Sensor Controllers

The EGI-130 sensor controller series units contain a DC short-circuit protected power supply & output relay. They are suitable for 2, 3 & 4 wire sensors with PNP/NPN, NO/NC or antivalent functions.

EGI-130 - one input, one C/O relay output, 110/230Vac supply
EGII-130 - dual input & output 110/230Vac supply
EGI-130-TD - an EGI-130 with timer function
EGI-130 - Sensor controller for min/max level control

EGI-130 data sheet

EGII-130 data sheet

EGI-130-TD data sheet

EGI-130-MM data sheet
