RM Series Relay Modules

DIN rail mounting
8, 10, 16, 20 & 32 way relay modules
Plug in relays
- 46.61 250VAC 10A CO mechanical relays
  Note. 10A fuse/fuse holder limited
- or SSR-EDxxC5 48VDC/280VAC 5A NO solid state relays
Fused output
Relay control via terminals or ribbon cable to PLC
RM-32WAY-24VDC ribbon cable only
RM-8WAY-24VAC terminals only

RM-8WAY-24VDC - 8 way relay module

RM-10WAY-24VDC - 10 way relay module

RM-16WAY-24VDC - 16 way relay module

RM-20WAY-24VDC - 20 way relay module

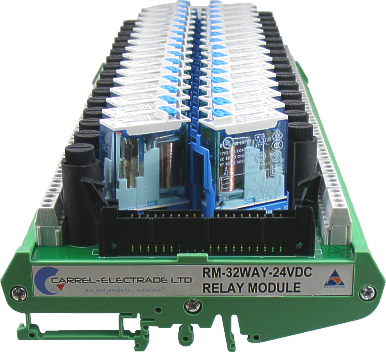

RM-32WAY-24VDC - 32 way relay module

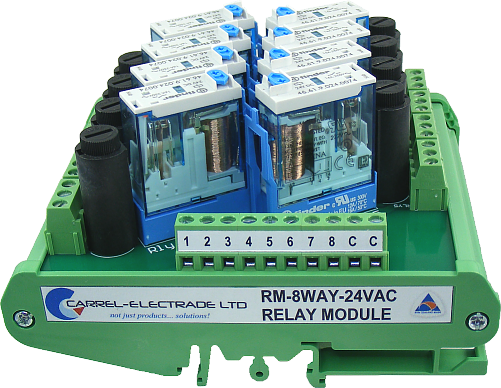

RM-8WAY-24VAC - 8 way relay module, 24V AC control

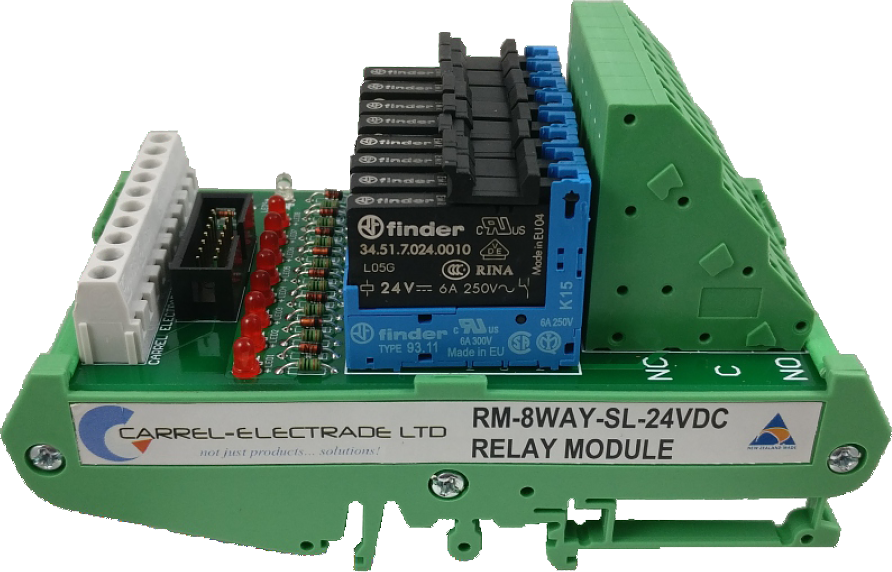

	RM Series Slim Line Relay Module Suitable for switching low voltage only, not suitable for mains voltages. DIN rail mounting 8 way relay module Plug in relays 34.51 6A CO mechanical relays normally fitted Optionally 34.81 solid state relays, 6A/24Vdc Relay control via terminals or ribbon cable to PLC RM-8WAY-SL-24VDC - 8 way slim line relay module

	RM Series Modbus Interface Relay Modules Modbus RTU comms RS485 9600 or 19200 Baud, no parity 8 bit 1 stop bit 8 & 16 relay modules 24V dc supply DIN rail mounting Plug in relays 46.61 250VAC 10A CO mechanical relays Note. 10A fuse/fuse holder limited or SSR-EDxxC5 48VDC/280VAC 5A NO solid state relays Fused output RM-8WAY-MB-24VDC - 8 way Modbus relay module RM-16WAY-MB-24VDC - 16 way Modbus relay module

Relay Interface Modules
Manufactured by EuroTek srl Italy

MRZxx data sheet

Relay Interface Modules

MR series relay modules

DIN rail mounting, compact space saving tray
Ease of wiring - wired with common neutral
Ease of maintenance - replaceable relays
LED indication
Fused options available
Screw or ribbon cable connectors

Modules available in three relay types

6A SPNO (8 way module)
10A SPDT (4, 8, 16 or 32 way modules)
16A SPDT (8 way module)

MP/FKxx data sheet

Passive Interface Modules

MP series passive modules

DIN rail mounting, compact space saving tray
Ease of wiring
Available with or without LED indication
Ribbon to screw connect or spring clamp interface

Data sheet

FP0-8WAY-INPUT-N & FP0-8WAY-INPUT-P Input Interface Modules
The FP0 PLC 8 Way Interface Modules provide an interface for 8 inputs with supply and 0V terminals for each of the 8 inputs on a 3 level by 8 way spring-cage connection terminal.
It is designed to interface with the FP0 range of PLCs via 10 way ribbon cable & IDC connectors.
The Module comes in two variations, one to interface the FP0 inputs with NPN outputs & the other to interface the FP0 inputs with PNP outputs.

Data sheet

FP0-16WAY-OP-P FP0 Output Interface Module
The FP0 PLC 16 Way Interface Module is designed to interface with the Panasonic FP0 range of PLCs via 10 way ribbon cables & IDC connectors.
The module provides 16 PNP outputs from the connected FP0 PLC.
The 16 outputs are accessed via a 3 level by 8 way spring-cage connection terminal. 8 common 0V connections are also available on the spring-cage connector.

Data sheet	DIM16-24V 16 Way Digital Input Module The DIM16-24V digital input module has a three tier spring clamp terminal block. Top row for 16 active high inputs plus two fuse blown (FB) outputs. The middle row is fused 24V supplies & the bottom row is 0V supply terminals. Output is via a 20 way ribbon cable connector.

Data sheet	DIM32-24V 32 Way Digital Input Module The DIM32-24V digital input module has a three tier spring clamp terminal block. Top row for 32 active high inputs plus two fuse blown (FB) outputs. The middle row is fused 24V supplies & the bottom row is 0V supply terminals. Output is via a 40 way ribbon cable connector.

Relay Bases

Menics PS-08 8 pin relay base.

Menics PS-11 11 pin relay base.

Schrack ZB11 11 pin relay base.
