Crouzet Programmable Logic Controllers
Millenium Slim Logic Controllers
Manufactured by Crouzet.

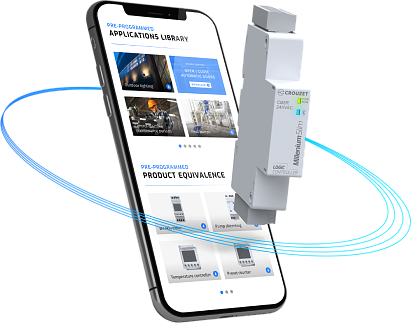

CB8R
A logic controller that is only 17.5mm wide.
With 8 configurable I/O, wireless Bluetooth configuration & monitoring.
  • DIN rail mount, 17.5mm wide
  • 8 configurable I/O & 4 inputs
    • CB8R-AC 4 digital inputs
    • CB8R-DC 4 configurable inputs, digital/analog/PWM
  • 24V DC or 110-240V AC power supply
  • Wireless Bluetooth to communicate with other Millenium Slim controllers
  • Virtual display on smart phone using Crouzet app.
  • Intuitive & easy to use graphical programming software

CB8R-DC Data sheet
CB8R-AC Data sheet

For more information visit www.crouzet.com/products/automation-controllers/millenium-slim
Millenium 3 Logic Controllers
Manufactured by Crouzet.
Brouchure
Catalog

Millenium 3 controllers make the programming of automation control systems as simple as possible. Users can design programs intuitively by moving "function blocks" on their PC screen, where the wiring appears automatically, or utilise standard ladder language programming. Standard versions offer 12 or 20 I/O, but expandable models are available to allow up to 50 I/O per controller. With its powerful calendar clock and analogue inputs, Millenium 3 is ideal for building management applications.

Pump control ST3000 series
Pump management 		Combine the convenience of the Pro-face HMI with a Crouzet Millenium 3 controller to solve a wide range of industrial monitoring & control applications.

Pro-face & Crouzet M3 Millenium Controller

CD12 CD12 - Standard Controller
  • 8 inputs
  • 4 outputs, relay or solid state
  • Supplies 12/24Vdc, 24Vac & 100-240Vac
CD20 CD20 - Standard Controller
  • 12 inputs
  • 8 outputs, relay or solid state
  • Supplies 12/24Vdc, 24Vac & 100-240Vac
XD10 XD10 - Expandable Controller
  • 6 inputs, 4 outputs
  • Supplies 24Vdc, 24Vac & 100-240Vac
XD26 XD26 - Expandable Controller
  • 16 inputs, 10 outputs
  • Supplies 12/24Vdc, 24Vac & 100-240Vac
XR14 XR14 - Extension Unit
  • 8 inputs, 6 relay outputs
  • Supplies 12/24Vdc, 24Vac & 100-240Vac

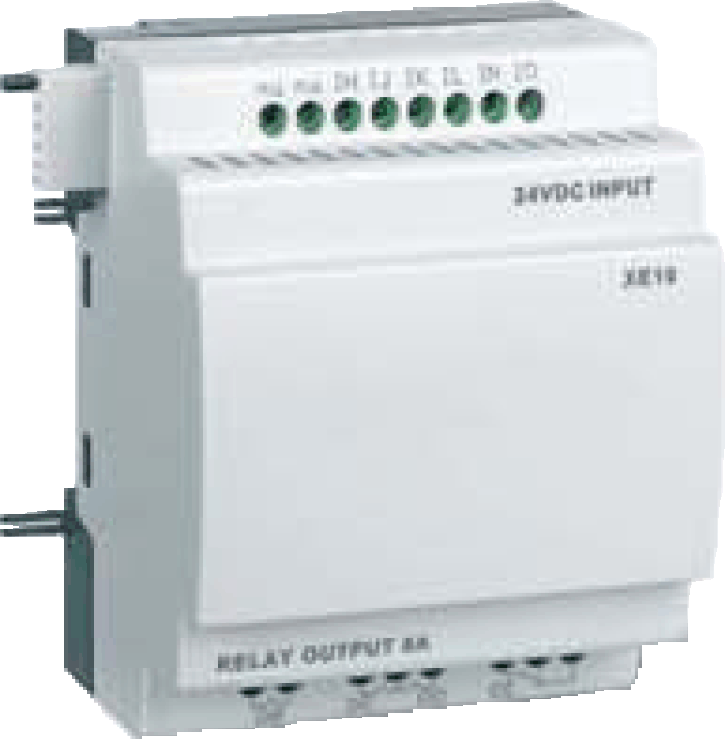

XE10 XE10 - Sandwich Extension Unit
  • 6 inputs, 4 relay outputs
  • Supplies 24Vdc, 24Vac & 100-240Vac
XA04 XA04 - Analogue Extension Unit
  • 2 analogue inputs, 0-10V, 0-20mA & Pt100
  • 2 analogue outputs, 0-10V & PWM
  • Supply 24Vdc

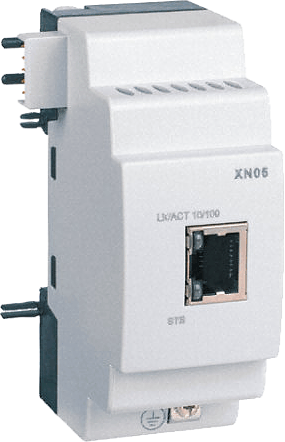

XN05 Millenium 3 Comms Modules
  • M3-MOD modem interface Comms
  • M3-GSM GSM modem
  • XN-05 Ethernet comms
  • XN-06 MODBUS® comms
  • XN-07 Master module for comms >6 x M3 units

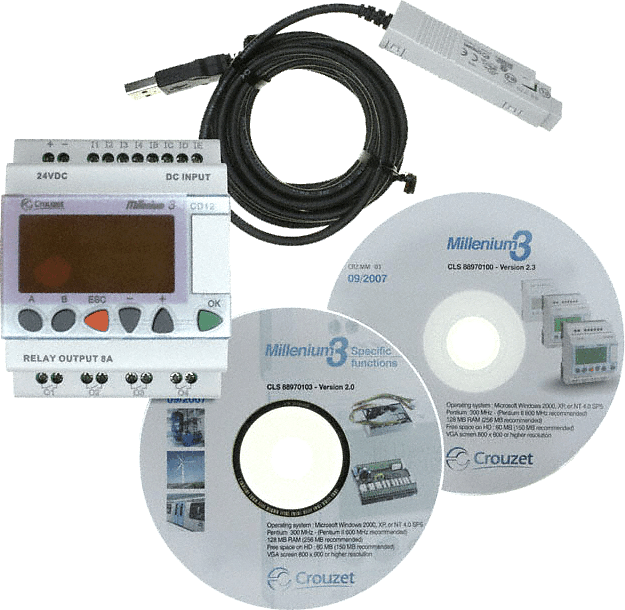

Programming Millenium 3 Programming
  • USB to PC link
  • EEPROM memory cassette
  • Software CD-ROMs
    • Level 1 programming
    • Specific applications library
    • Alarms
XN05 M3-LED-DISPLAY Millenium 3 Displays
  • 3 colour alphanumeric runtime screen kit
  • 3 colour alphanumeric programming kit
  • Monochrome alphanumeric programming kit
  • 4 digit LED remote display, 36x72mm, 0-10V input
