Control Panel, Switchboard Accessories
|
|
|
Carrel Electrade supply a wide range of products for control panels & switchboards,
including push buttons, switches, panel indicators & buzzers.
|
|
 |
Pizzato Switches
Manufactured by Pizzato Elettrica S.r.l.
|
|
|
|

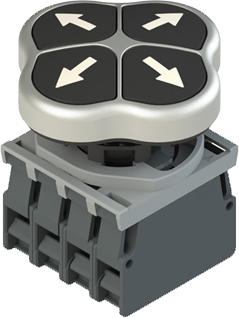

Pizzato PZ E2 Modular Push Button Switches
Build up a push button switch to suit your needs.
- Illuminated or non-illuminated
- Momentary or maintained
Pizzato Pushbuttons & Controls
|
|
 |
+ |
 |
+ |
 |
+ |
 |
= |
 |

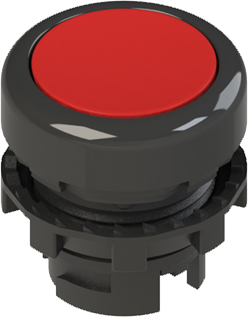

| Actuator/Lens |
|

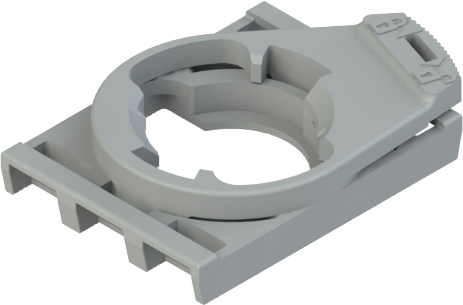

Mounting Adaptor |
|

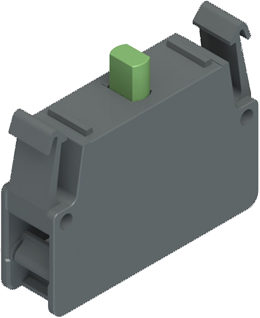

Contact Block |
|

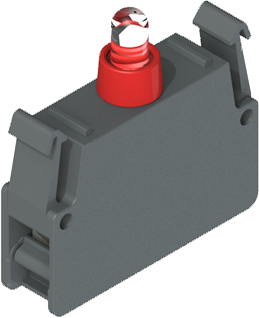

Illumination Block |
|

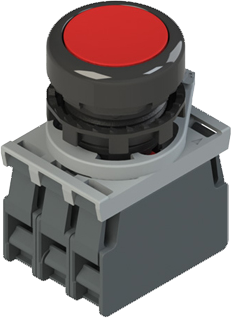

Complete Unit |
|
|
| Emergency Stop Buttons |
|
 |
Pushbutton Switches
Manufactured by Rafi
|
|
|
|
|
Rafi Impulse Pushbutton
- Ø15mm mounting hole
- Black, red & green
- NO or NC contacts
- 25000 operations
- 0.7A 250Vac switching
|
|
|
|
Rafi Impulse Pushbutton
- Ø16mm mounting hole
- Black, red & green
- NO or NC contacts
- 150000 operations
- 0.7A 250Vac switching
|
|
|
|
Rafi Impulse Pushbutton
- Ø18mm mounting hole
- Black, red & green
- NO & NC or 2 x NO contacts
- 50000 operations
- 2A 250Vac switching
|
|
 |
Piezo-Electric Switches
Manufactured by Baran Advanced Technologies
Piezo-electric push-button switches are ideal for harsh environments.
Stainless steel construction with no moving parts, vandal resistant, rated for 50,000,000 operations at rated switching load.
|
|
|
|
|
Piezo-electric Push-button
- Maximum reliability & durability
- No moving parts
- Stainless steel 28mm diameter, PG16 thread mounting(22.5mm)
- IP68 protection, -40°C to +125°C operation
- Momentary switching NC, 24V ac/dc max. 200 - 500mA
|
|
|
|
Piezo-electric Push-button
With LED illumination
- Maximum reliability & durability
- No moving parts
- Stainless steel 25mm diameter, M22x1.5 mounting
- IP68 protection, -40°C to +125°C operation
- Momentary switching, NO 24V ac/dc max. 200 - 500mA
- Illumination by red & green LEDs, 24Vdc
|
|
|
|
Piezo-electric Push-button
- Maximum reliability & durability
- No moving parts
- Stainless steel 18mm diameter, M16x1 mounting
- IP68 protection, -40°C to +125°C operation
- Momentary switching NO, 24V ac/dc max. 200 - 500mA
|
|
|
|
Piezo-electric Push-button
- Maximum reliability & durability
- No moving parts
- Stainless steel 19mm diameter, M16x1 mounting
- IP68 protection, -40°C to +125°C operation
- Momentary switching NO, 24V ac/dc max. 200 - 500mA
|
|
 |
Piezo-Electric Switches
from TH Contact
|
|
|
|
TH Contact TP7 Piezo-electric Push-button Switches
- Maximum reliability & durability
- No moving parts
- Stainless steel or aluminium
- IP68 protection
- Momentary switching, 3-35V ac/dc max. 200mA
- Variations:
- 702020-129 Stainless steel Ø18mm raised housing, NO momentary pre-wired
- 7031xx-131 Ø25mm aluminium flush housing, NC momentary pre-wired
- Colours green(02) or red(04)
- 7036xx-164 Ø25mm aluminium flush housing, NO momentary solder connection
- Colours green(02), red(04) & dark blue(08)
|
|
 |
Panel Mounted Buzzers
from Solitronics
|
|
|
|
|
SE-16D Switches
LED illuminated pushbutton switches
- Colours - amber, red, blue, red, green, white & yellow
- Momentary or latching
- Ø18mm or 18x14mm actuator
- Ø16mm mounting hole
- 24V ac/dc or 240Vac lamp supply
|
|
 |
Cam-Operated Selector & Isolator Switches
Manufactured by Crompton Greaves |
|
Data sheet
|
|
|
|
|
|
|
