Audible & Visual Alarms

Fire Alarm Sounders

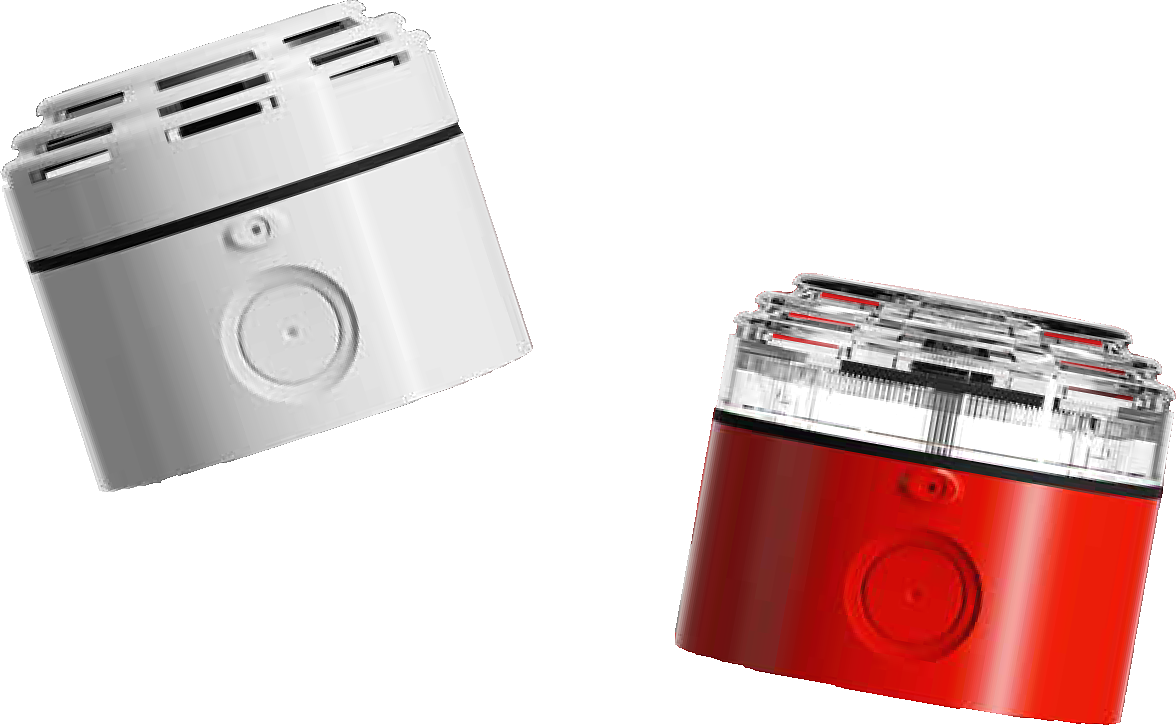

	Sirena Multi Sounder FA & Multi LED Sounder FA. EN54-certified for fire protection applications High performance, low power consumption & maximum reliability Electromagnet buzzer with 8 sound combinations, two volume settings up to 105dB Flashing LED Multi LED Sounder FA version

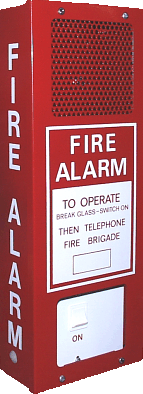

	Carrel Electrade wall mounting fire alarms. Break glass manually operated
	Fire alarm call point. Manual break glass and switch call point

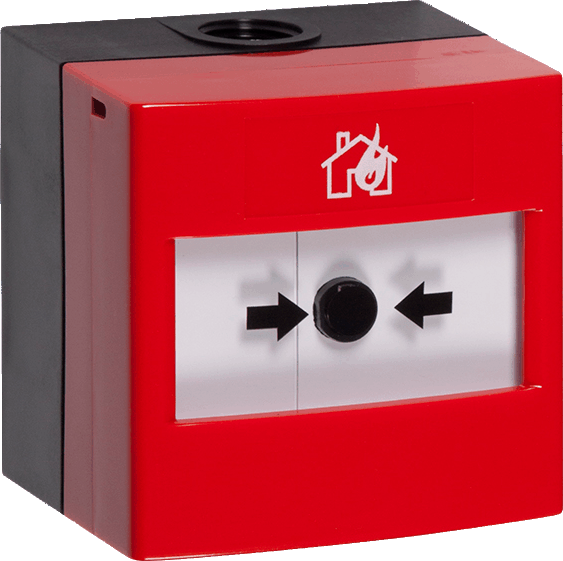

	WRP2 Weatherproof call point. IP67 rated, EN54-11 approved.
	Carrel-Electrade EWS6 one-piece multi-tone electronic sounder. 118dBA, IP66, 10-30Vdc. Complies with NZS4512:1997 fire alarms systems in buildings.
	Carrel-Electrade EWSF AS2220 fire/evacuation sounder driver board. 100dBA, 10-30Vdc. Complies with NZS4512:1997 Fire Alarms Systems in Buildings.

Explosion Protected / Intrinsically Safe Sounders

	Auer dHH explosion proof signal horn, 110dB output, IP66. Supplies dHH1 6-240Vac, dHH2 6-240Vdc.
	Pfannenberg IS-mA1 intrinsically safe sounder. 24Vdc supply, IP65. 49 selectable tones. Volume control, 102dBA sound level.
	Qlight SPNA explosion proof electric horn. 5 selectable tones, adjustable volume up to 118dBA sound level. 24Vdc supply

Explosion Protected / Intrinsically Safe Beacons

	Pfannenberg IS-mB1 intrinsically safe beacon. 24Vdc supply, IP65. Super bright LEDs. Red, green, blue & yellow/amber.
	Qlight SEAL explosion proof red or blue LED beacon. Steady or flashing, power supply 24Vdc.

Explosion Protected / Intrinsically Safe Combined Sounders & Beacons

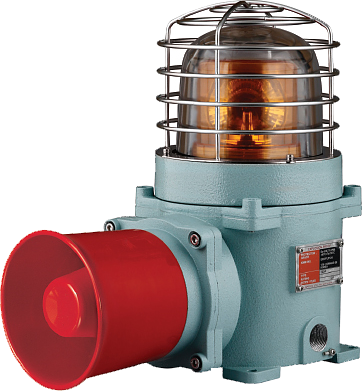

	Qlight SESALR explosion proof combination sounder & beacon. Revolving red LED warning light, sounder up to 118dB output. 220/230Vac supply

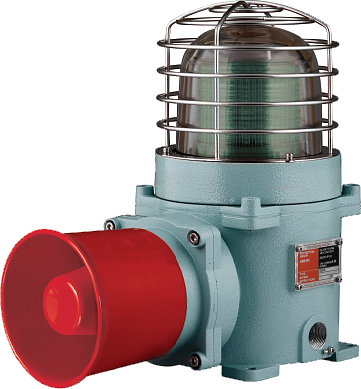

	Qlight SESAL explosion proof combination sounder & beacon. Steady or flashing amber/blue high intensity LED beacons, sounder up to 118dB output. 24Vdc supply

Intrinsically Safe Sounders & Beacons

Manufactured by Pfannenberg

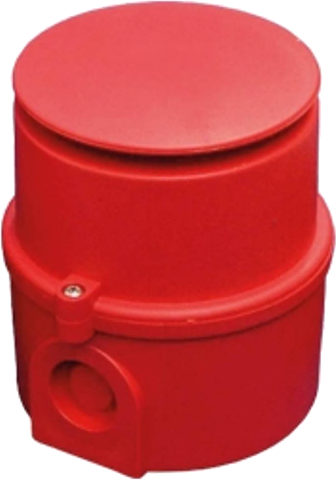

IS-mA1 Sounder

IECEx Certificate

IS-mA1
IS-Mini series sounder

IECEx certificate of conformity IECEx SIR 06.0045X
Certified for use in Ex-Zones 0, 1 and 2
102dBA output
Volume control, sound reduction -20dBA
Compact design, 88mm diameter
24Vdc supply, 25mA
Environment IP65 -40°C to +60°C

IECEx Certificate

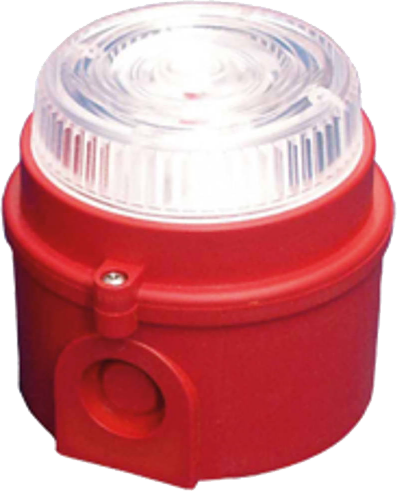

IS-mB1
IS-Mini series LED blinking and flashing light

IECEx certificate of conformity IECEx SIR 06.0045X
Certified for use in Ex Zones 0, 1 and 2
Super-bright LEDs in red, green, blue & yellow/amber
Compact design, 88mm diameter
Supply 24Vdc, 25mA
Environment IP65 -40°C to +60°C
