Audible & Visual Alarms
|
|
- Bells
 |
CB150 bell, electronically controlled solenoid striker, sound level >93dB.
6, 12, 24V dc & 12, 24, 110, 230V ac supplies. |
 |
Sirena SD165 under dome bell, 98dB, 12, 24V dc & 24, 110, 230V ac. |
- Buzzers & Beepers
 |
SEL SE-16D-BZ panel mounted buzzer. 18mm diameter & 16mm mounting hole.
80dB, 1 sec on/off. Supply options 24V ac/dc & 230V ac. |
 |
SEL-22D panel mounted beeper. 29mm diameter & 22mm mounting hole.
80dB sound output. Supply options 24V ac/dc & 240V ac. |
 |
Auer ESM & ESG panel mounted buzzers, 65mm/45mm diameter, 105dB/100dB.
IP65 12-24V ac/dc & 230V ac. |
 |
Sirena BIP 92 panel mounted buzzer, 44mm diameter, 75dB.
IP30 12V, 24V ac/dc & 240V ac. |
 |

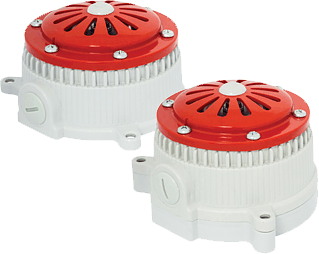

Sirena Microsai Buzzer, 300Hz 95dB. Continuous or intermittent sound options.
IP65 230Vac, rated for intermittent operation, 1 minute on 10 minutes off. |
 |
CZ80 electromechanical buzzer, 80dB, 6/12/24V dc & 12/24/230V ac. |
-
Horns
-
Motor Driven Sirens
- High Output Motor Driven Sirens
|
|
|
| Double Ended Siren
Ideal for rural fire services and other applications where high power audible warning signals are required.
- Sound output approx 525Hz, 133dBA at 1 metre
- Audible for 8km in still air
- Rugged construction for outdoor use
- Three phase (400/440V ac) 4kW motor
- Height 420mm, width 420mm, length 590mm
- Weight 70kg
|
|
|
| Single Ended Siren
- Sound output approx 500Hz, 130dBA at 1 metre
- Audible for 4km in still air
- Rugged construction for outdoor use, IP55
- Single phase 230Vac or 3 phase 400Vac, 2.2kW motor
- Height 410mm, width 400mm, length 550mm
- Weight 40kg
|
|
|
|
Data sheet.
