CT-IL loop powered transducer mounted on a CT

Model CT-IL

CT-IL data sheet.

CT-IL CT to 4-20mA Loop Powered Transducer

The CT-IL transducer converts the 5A secondary output from a current transformer into a 4-20mA current loop.
The output is proportional to the rms calibrated rectified arithmetic mean of the input.
Accurate measurement assumes a sinusoidal input waveform.
Power for the unit is derived from the loop current.

Basic Specifications:
Input	Sinusoidal alternating current
	Range	: 5A
	Burden	: <1VA @ 5A
	Overload	: 2 x continuous
	Frequency	: 50Hz, 60Hz
Output	Load independent dc current
		: 4 - 20mA dc <750Ω load
Accuracy		: Class 0.5 to IEC 60688
	Range	: 0 to 120% of nominal input
Loop Supply		: 10 - 30V dc
Temperature	Operating	: 0°C to +23°C to +60°C
EMC Compliance		: AS/NZS 61000.6.3:2012

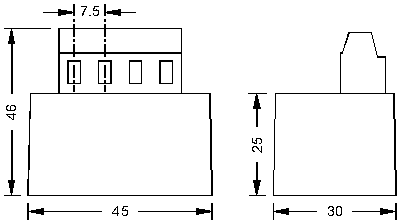

Dimensions
