Sensors - Limit Switches & Microswitches
|
|
|
-
Industrial Position/Limit Switches
 |
Industrial Position Switches
Manufactured by Pizzato Elettrica S.r.l.
|
|
|

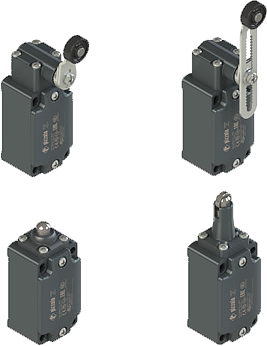

Pizzato FD-Series Position Switches
Position switches for heavy applications
- Rugged metal housing with M20 conduit entry
- IP67 protection
- Variations:
- 17 contact blocks available
- 29 actuators available
- Versions with M12 connector
- Versions with gold plated silver contacts
- Versions with stainless steel external parts
FD series data sheet
FD series flyer
|
|
|
Pizzato FR-Series Position Switches
- Technopolymer housing with M20 conduit entry
- IP67 protection
- Variations:
- 17 contact blocks available
- 48 actuators available
- Versions with M12 connector
- Versions with gold plated silver contacts
- Versions with stainless steel external parts
FR series data sheet
FM & FR series flyer
|
|
|

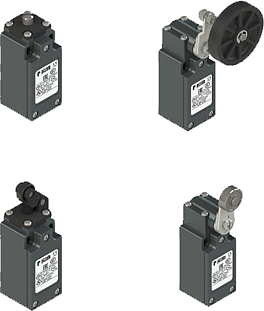

Pizzato FM-Series Position Switches
- Metal housing with M20 conduit entry
- IP67 protection
- Variations:
- 17 contact blocks available
- 48 actuators available
- Versions with M12 connector
- Versions with gold plated silver contacts
- Versions with stainless steel external parts
FM series data sheet
FM & FR series flyer
|
|
|

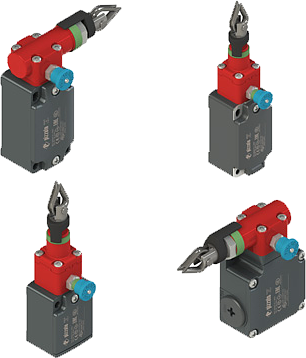

Pizzato F-Series Rope Pull Switches
A range of rugged metal & resin bodied rope pull switches for emergency and signalling use.
- Metal or resin bodied options
- M20 conduit entry
- Versions with M12 connector
- Versions with gold plated silver contacts
Rope pull switches flyer
|
|
 |
Industrial Limit Switches
Manufactured by Crouzet.
|
|
|
Crouzet 83850 Series DIN Size Plastic Limit Switches
- 22mm mounting centres
- 10A/250Vac NO/NC contacts
- IP66 protection
- Variations:
- 83850380 - bi-directional rotary head with extended roller lever actuator
- 83850303 - bi-directional rotary head with adjustable plastic roller lever
|
|
-
Microswitches
|
Common Microswitches
Manufactured by Crouzet.
|
|
|

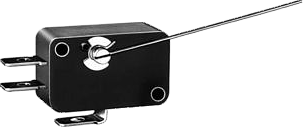

Crouzet 83161 V3 Microswitches
- 16A/250Vac SPCO contacts
- Variations:
- Lever selection for 83161 V3 microswitches:
- 161A-25 - plain lever 25.4 radius
- 161A-72 - plain lever 72.8mm radius
- 161E-13 - roller lever 13.6mm radius
- 161E-24 - roller lever 24.1mm radius
|
|
 |
Microswitches
Manufactured by Panasonic.
|
|
|
Panasonic AM Series Microwitches
- Screw terminal
- 15A/250Vac CO contact
- Variations:
- AM1300KF - side mounting pin plunger
- AM1301KF - side mounting flexible leaf lever
- AM1303KF - side mounting flexible roller leaf lever
- AM1305KF - side mounting over-travel plunger
- AM1307KF - panel mounting push plunger
- AM130811KF - panel mounting roller plunger
- AM130812KF - panel mounting cross roller plunger
- AM1701KF - side mounting rigid lever
- AM1703KF - side mounting roller lever
- AM1704KF - side mounting short roller lever
- AM1743KF - side mounting reverse-bypass roller lever
- AM1744KF - side mounting short reverse-bypass roller lever
|
|
-
Specialised Microswitches
|
|
