Photoelectric Sensors
|
|
|
Thru-beam Sensors use a separate light emitter and receiver, the sensor changes output state when the beam is broken.
Advantages include high reliability and a strong beam that can operate up to 50 metres.
Requires wiring to both sides of the detection path.
|
|
 |
Thru-beam Photoelectric Sensors
 |
Autonics BX15M-TFR & BX15M-TFR-T, 24-240V AC/DC supply, IP66. Sensitivity adjustment.
Optional timer function, distance up to 15m. Relay output, CO contacts.
BX series instructions |
 |
Autonics BRQP20M-TDTAC-C-P 10-30VDC supply. Sensitivity adjustment.
Distance up to 20m, PNP output. Dark on or dark off.
BRQ series instructions |
 |

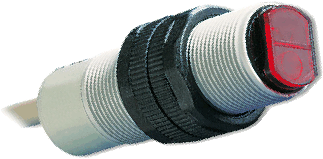

Panasonic CY-111, M18 threaded, 12-24Vdc supply, IP67. Short bodied, low cost sensor.
Distance up to 15m. Light on or dark on, NPN or PNP, 100mA/24Vdc switching. |
 |
Panasonic CY11A, CY11B M18 threaded, 24-240Vac supply, 200mA thyristor output.
IP67, distance up to 12m, light on CY11A or dark on CY11B. |
 |

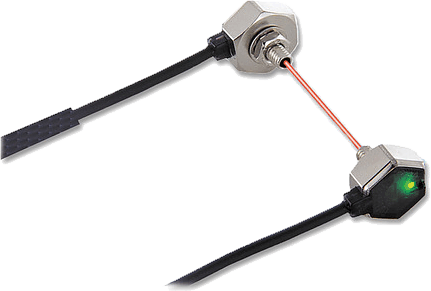

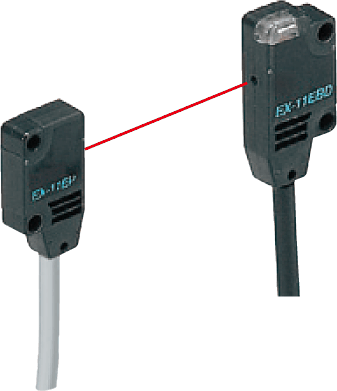

Panasonic EX-10 series sub-miniature sensors. 12-24Vdc supply, IP66 rated.
Light on & dark on, side sense & front sense. NPN output. 150mm to 500mm sensing. |
 |
Panasonic EX-31 threaded miniature sensor. 12-24Vdc supply, IP67 rated.
Light on & dark on. NPN output. 500mm sensing. |
 |
Panasonic RT-610 U shaped sensors. 12-24Vdc supply.
Light on & dark on. NPN output. 10 & 50mm aperture. |
 |

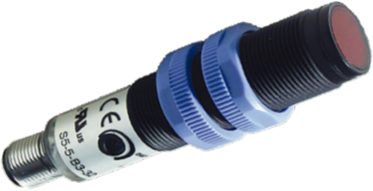

Datalogic S5 series M18 threaded with 2m cable, 15-264Vac supply (requires G8 emitter).
IP67, distance up to 8m. S5-1-F8-10 dark-on & S5-1-F8-20 light-on. |
 |
Datasensor S10 series stainless steel M18 threaded, 10-30Vdc supply.
IP69K, distance up to 18m, PNP output. |
 |
Datasensor S15 series short bodied M18 threaded, PBT plastic, 10-30Vdc supply.
Distance up to 20m, selectable light on or dark on, PNP or NPN output. |
 |
Panasonic CX-400 miniature series, 12-24Vdc supply, IP67.
Distance up to 15m, selectable light on or dark on, PNP or NPN output. |
 |
Panasonic NX5M10RA, NX5M10RB, 12-240Vdc, 24-240Vac supply, IP66, 1A relay output.
Pre-wired, 2m cable. Up to 10m, NX5M10RA light on, NX5M10RB dark on. |
|
Panasonic NX5M30A, NX5M30B, 12-240Vdc, 24-240Vac supply, IP66, 1A relay output.
Pre-wired, 2m cable. Up to 10m, NX5M30A light on, NX5M30B dark on. |
|
|
Retro-reflective Sensors use a single sensor that combines both emitter & receiver in the one block, the sensor bounces light off a reflector back to its emitter.
The sensor changes output state when the reflected beam is broken.
Typical working range up to 7 metres.
|
|
 |
Retro-reflective Photoelectric Sensors
Requires reflector
|
Autonics BX5M-MFR & BX5M-MFR-T, 24-240V AC/DC supply, IP66. Sensitivity adjustment.
Optional timer function, distance up to 5m. Relay output, CO contacts.
BX series instructions |
|
Autonics BRQP3M-PDTA 10-30VDC supply. Sensitivity adjustment.
Distance up to 3m, NPN output. Dark on or dark off.
BRQ series instructions |
|
Panasonic CY-192, M18 threaded, 12-24Vdc supply, IP67. Short bodied, low cost sensor.
Distance up to 4m. Light on or dark on, NPN or PNP, 100mA/24Vdc switching. |
|
Panasonic CY17A, CY17B M18 threaded, 24-240Vac supply, 200mA thyristor output, IP67.
Distance up to 3m, light on CY17A or dark on CY17B. |
|
Panasonic CY19B M18 threaded, 24-240Vac supply, 200mA thyristor output, IP67.
Distance up to 1.5m, dark on. |
|
Datalogic S5 series M18 threaded with 2m cable, 15-264Vac supply (requires R4 reflector).
IP67, distance up to 4m. S5-1-A2-10 dark-on & S5-1-A2-20 light-on. |
|
Datasensor S10 series stainless steel M18 threaded, 10-30Vdc supply, IP69K.
Distance up to 4m, dark on, PNP output. |
|
Datasensor S15 series short bodied M18 threaded, PBT plastic, 10-30Vdc supply.
Distance up to 4m, selectable light on or dark on, PNP output. |
 |

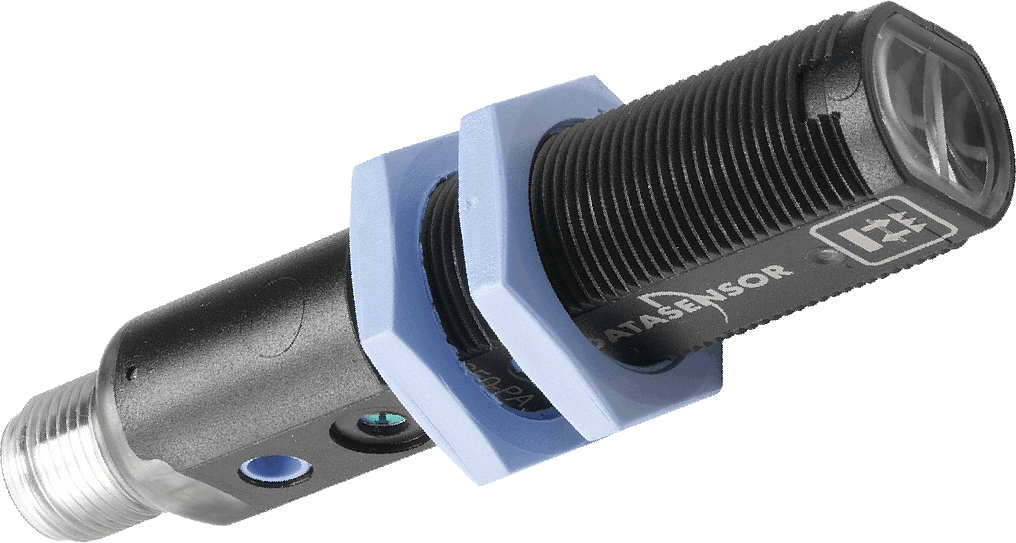

Datasensor S50 series M18 threaded M12 connector. IP67 10-30Vdc supply.
S50-PL-5-B01-PP PNP axial, up to 16m, selectable light-on or dark-on(N/O-N/C).
S50-PH-5-B01-PP PNP radial, up to 9m, selectable light-on or dark-on(N/O-N/C). |
 |
Datalogic S8-MR-5-T53-PP stainless steel IP68K. 12-30Vdc supply, M12 connector.
Polarised retro sensor, distance up to 2m, selectable light on or dark on, PNP output. |
|
Panasonic CX-400 miniature series, 12-24Vdc supply, IP67.
Distance up to 5m, selectable light on or dark on, PNP or NPN output. |
 |
Panasonic RF230 50 x 50mm reflector. |
|
Panasonic NX5PRVM5A, NX5PRVM5B, 12-240Vdc, 24-240Vac supply, 1A relay output.
IP66, pre-wired, 2m cable. Up to 5m, NX5PRVM5A light on, NX5PRVM5B dark on.
Complete with reflector. |
|
Panasonic NX5RM7A, NX5RM7B, 12-240Vdc, 24-240Vac supply, IP66, 1A relay output.
Pre-wired, 2m cable. Up to 7m, NX5RM7A light on, NX5RM7B dark on.
Complete with reflector. |
|
|
Diffuse Sensors combine both the emitter & receiver in a single block.
They detect objects from the sensors emitted light being reflected back to the sensor from the object.
This method shortens the sensing range considerably, but allows for refinements such as "Fixed-Focus" sensing.
Typical sensing distances are up to 2 metres.
|
|
 |
Diffuse Photoelectric Sensors
|
Autonics BX700-DFR & BX700-DFR-T, 24-240V AC/DC supply, IP66. Sensitivity adjustment.
Optional timer function, distance up to 700mm. Relay output, CO contacts.
BX series instructions |
|
Autonics BRQP100-DDTA-C-P 10-30VDC supply. Sensitivity adjustment.
Distance up to 100mm, PNP output. Dark on or dark off.
BRQ series instructions |
|

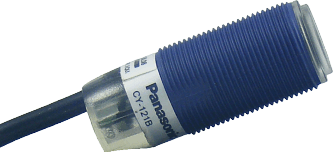

Panasonic CY-121, M18 threaded, 12-24Vdc supply, IP67. Short bodied, low cost sensor.
Distance up to 100mm. Light on or dark on, NPN or PNP, 100mA/24Vdc switching. |
|
Panasonic CY-122, M18 threaded, 12-24Vdc supply, IP67. Short bodied, low cost sensor.
Distance up to 600mm. Light on or dark on, NPN or PNP, 100mA/24Vdc switching. |
|
Panasonic CY12A, CY12B M18 threaded, 240Vac supply, 200mA thyristor output, IP67.
Distance up to 120mm, light on CY12A or dark on CY12B. |
 |

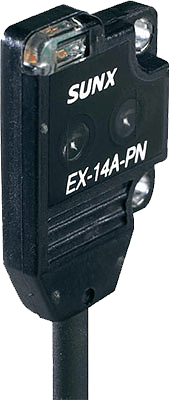

Panasonic EX-14 sub-miniature sensors. 12-24Vdc supply, IP66 rated.
Light on & dark on, NPN output. 2-25mm sensing. |
 |
Panasonic EX-32 threaded miniature sensor. 12-24Vdc supply, IP67 rated.
Light on & dark on. NPN output. 50mm sensing. |
|
Datalogic S5 series M18 threaded with 2m cable, 15-264Vac supply.
IP67, distance up to 300mm. S5-1-C30-10 dark-on & S5-1-C3-20 light-on. |
|
Datasensor S10 series stainless steel M18 threaded, 10-30Vdc supply, IP69K.
Distance up to 600mm, dark on or light on, PNP output. |
|
Datasensor S15 series short bodied M18 threaded, PBT plastic, 10-30Vdc supply.
Distance up to 350mm, selectable light on or dark on, PNP output. |
|
Datasensor S50 series M18 threaded M12 connector. IP67 10-30Vdc supply.
S51-PA-5-C01-PK PNP axial, up to 400mm, selectable light-on or dark-on(N/O-N/C).
S51-PR-5-C01-PK PNP radial, up to 300mm, selectable light-on or dark-on(N/O-N/C). |
|
Datalogic S8-MR-5-W03-PP stainless steel IP68K. 12-30Vdc supply, M12 connector.
Contrast sensor up to 9mm, selectable light on or dark on, PNP output. |
|
Panasonic CX-400 miniature series, 12-24Vdc supply, IP67.
Distance up to 800mm, selectable light on or dark on, PNP or NPN output. |
 |
Panasonic VFD500-3 & VFD1000-3, 12-240Vdc, 24-240Vac supply, IP66. Optional timer.
Distance 0.5m & 1m, selectable light on or dark on, 1A relay output. |
|
Panasonic NX5D700A, NX5D700B, 12-240Vdc, 24-240Vac supply, IP66, 1A relay output.
Pre-wired, 2m cable. Up to 7m, NX5D700A light on, NX5D700B dark on. |
 |
Panasonic RXLS200, RXLS200P, 12-24Vdc supply, IP67, Pe-wired 2m cable.
50-200mm, light on or dark on, RXLS200 NPN output, RXLS200P PNP output. |
 |
Panasonic EQ34 series, 12-24Vdc supply, IP67, Pe-wired or plug-in.
0.2-2m, light on or dark on, NPN or PNP output options. |
 |
Panasonic EQ-500 series, 12-240Vdc, 24-240Vac supply, IP67, timer option.
0.2-2.5m, light on or dark, 3A relay or NPN/PNP output options. |
 |
Datalogic Infra FQ Series, 14-230V ac/dc supply, IP65.
0.35-1.8m sensing, relay output, 2m cable. |
|
|
|
