Carrel Electrade - Machine Safety Products

Safety Controllers
Manufactured by ReeR.

ReeR Safety Products Catalogue

Mosaic Introduction Video

Catalog

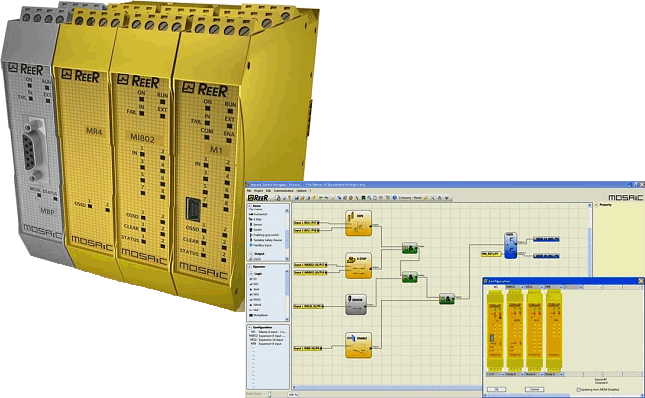

Mosaic Safety Controller

Mosaic is a modular, configurable safety controller for protecting machinery,
plant & personnel.
Simultaneously monitoring several safety sensors and commands, concentrating management of these signals in a single, flexible device.

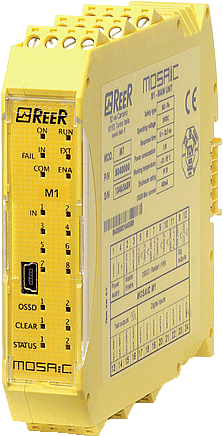

Mosaic-M1 Master unit with 8 digital inputs & 2 safety outputs
Mosaic-M1S Master unit with 8 digital inputs & 2 safety outputs - enhanced
Mosaic-MA4 Analog input expansion, 4 independent isolated channels
Mosaic-MBEM Modbus TCP interface
Mosaic-MI8 Expansion unit, 8 digital inputs & 4 test outputs
Mosaic-MI8O2 Expansion unit, 8 digital inputs & 2 safety outputs
Mosaic-MI12T8 Input expansion unit, 12 digital inputs, 8 test outputs
Mosaic-MI16 Input expansion unit, 16 digital inputs, 4 test outputs
Mosaic-MO4 Output expansion unit, 2 safety output pairs
Mosaic-MOR4S8 Expansion unit, 4 relays, 8 status outputs
Mosaic-MR2 Safety relay module, 4 x NO & 1 x NC
Mosaic-MR4 Safety relay module, 4 x NO & 2 x NC
Mosaic-MOS8 Expansion unit, 8 status outputs
Mosaic-MV0 Expansion module for safety speed monitoring
Mosaic-MV1T Expansion module for safety speed monitoring - TTL encoder

Mosaic configuration software link:
https://www.reersafety.com/us/en/download/mosaic

Mosaic Range Online WEBINAR

Catalog

Reer Safety Relays & Interfaces

Safety relay modules for devices with integrated feedback input or EDM, with force guided contacts & additional NC contact for monitoring by the light curtain, & safety interfaces for dedicated interface between safety light curtains & control circuits of machines or plant.

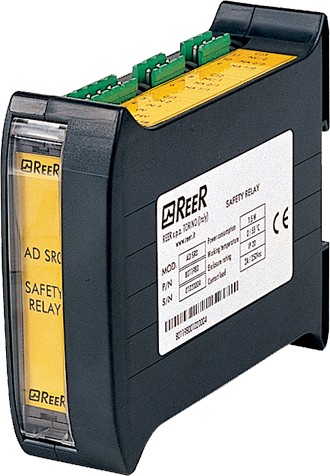

AD-SRO Safety relay, 2x NO + 1x NC
AD-SRM Safety relay interface with muting, 2x NO

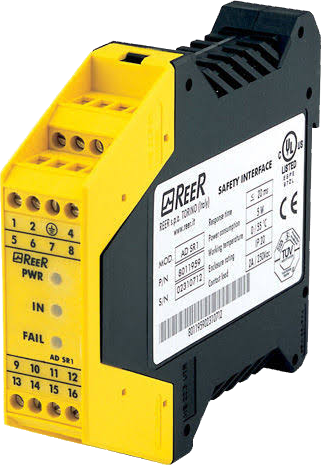

AD-SR1 Safety relay interface Cat 4, 2x NO
AD-SRE4 Safety relay interface, "E-STOP", CAT 4, 3x NO + 1x NC
AD-SRT Safety relay interface, two-hand control, CAT 4, 3x NO + 1x NC
AU SX Safety interface, type 2, 2x NO

Catalog

7S Series - Relay module with forcibly guided contacts.

For safety applications, with class A forcibly guided contact relays (EN 50205).

7S.12-024-5110 Safety relay, 1x NO 1 x NC 6A AgNi+Au contacts, 24Vdc
7S.12-230-5110 Safety relay, 1x NO 1 x NC 6A AgNi+Au contacts, 230Vac
7S.14-024-0220 Safety relay, 2x NO, 2x NC, 6A AgNi contacts, 24Vdc
7S.14-230-0220 Safety relay, 2x NO, 2x NC, 6A AgNi contacts, 230Vac
7S.14-024-0310 Safety relay, 3x NO, 1x NC, 6A AgNi contacts, 24Vdc
7S.14-230-0310 Safety relay, 3x NO, 1x NC, 6A AgNi contacts, 230Vac
7S.16-024-0420 Safety relay, 4x NO, 2x NC, 6A AgNi contacts, 24Vdc
7S.16-230-0420 Safety relay, 4x NO, 2x NC, 6A AgNi contacts, 230Vac

Data sheet

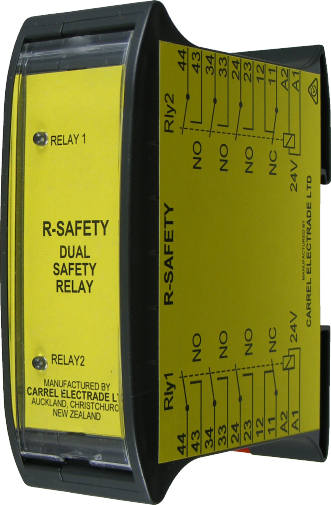

R-Safety - Dual safety relay.

Two separate relays with forcibly guided contact relays (EN 61810).

3x NO & 1 x NC contact per relay
Contact material AgSnO₂
Contact rating:
- AC1 2000VA, 8A 250Vac
- AC15, 700VA 230Vac
- Minimum load 50mW, 5V 10mA
- DC1 30V/8A. 110V/0.6A
24Vdc coil
