Finder Relays
Relays & Contactors
Manufactured by Finder
Finder relay conversion chart
New from Finder
MasterINTERFACE Tomorrow's Interface Today!
The 39 Series MasterINTERFACE is a new concept in interface relays from Finder. Ultraslim (only 6.2 mm) and available in 5 different versions, suitable for interfacing with PLC-controlled automated systems.


MasterBASIC for use in any type of system.
MasterPLUS with fuse – a unique feature for an ultraslim (6.2 mm wide) interface module.
MasterINPUT and MasterOUTPUT models allow a direct connection to the interface without the need for additional terminals.
MasterTIMER is a Multifunction and Multi-scale timed interface module.

39 Series
Data sheet
39 Series Interface Relays
  • DIN rail mounting
  • Integral base
  • LED indication
  • SPDT/6A replaceable relay
  • 6V, 12V, 24V, 110-125V & 230V AC/DC
 39 Series
38 Series
Data sheet
38 Series Interface Relays
  • DIN rail mounting
  • Integral base
  • SPDT/6A, DPDT/8A
  • LED indication
  • 24V, 110V, 230V AC & 6V, 12V, 24V DC
 38+93
40 Series
40 series data sheet
86 series data sheet
40 Series Slimline Relays
Base/PCB mounting.
  • 40.31 SPDT/10A 12/24/48/110V DC, 12/24/48/110/240V AC
  • 40.52 DPDT/8A 12/24/48/110V DC, 12/24/48/110/230V AC
  • 40.61 SPDT/16A 12/24/48/110V DC, 12/24/48/110/230V AC

Timer Module Options
Used in conjunction with 95 series bases.
  • 86.30 - Delay on/delay-off timer, 12-24V AC/DC
  • 86.00 - Multifunction timer, 12-240Vac

Relay base options
  • 95.03 - Base for 40.31 relay
  • 95.05 - Base for 40.52, 40.61 relays
  • 95.13 - PCB mounted base for 40.31 relay
  • 95.15 - PCB mounted base for 4052, 40.61 relays
 40+95
46 Series
46 series data sheet
86 series data sheet
46 Series Slimline Relays
Lockable test button
  • 46.52 DPDT/8A 12/24/48V DC, 12/24/48/110/230V AC
  • 46.61 SPDT/16A 12/24/48V DC, 12/24/48/110/230V AC
  • 46.61-5074 SPDT/16A with gold flashed contacts 24V DC

Timer Module Options
Used in conjunction with 97.01 & 97.51 bases
  • 86.30 - Delay on/delay-off timer, 12-24V AC/DC
  • 86.00 - Multifunction timer, 12-240Vac

Relay base options
  • 97.01 - Screw terminal base for 46.61
  • 97.02 - Screw terminal base for 46.52
  • 97.51 - Screw less (clamp-on) terminal base for 46.61
  • 97.52 - Screw less (clamp-on) terminal base for 46.52
 46+97
50.12 Relays
50.12 data sheet
50.12 Forcibly Guided Contact Relays
  • PCB mount relay
  • For safety applications according to EN 50205 type B
  • 8A CO AgNi contacts, optional gold plated (5μm)
  • High physical separation between adjacent contacts
  • 8mm, 6kV isolation
  • 12V & 24V DC
7S Series
7S series data sheet
7S Series Forcibly Guided Contact Relays
  • DIN rail mounted
  • For safety applications according to EN 50205 type A
  • 2, 4 or 6 poles 6A 250Vac
    • 1 NO & 1 NC, optional gold plated (5μm)
    • 2 NO & 2 NC
    • 3 NO & 1 NC
    • 4 NO & 2 NC
  • 24Vdc or 230Vac
55 Series
55 series data sheet
86 series data sheet
55 Series General Purpose Relays
Flat-pin style, gold flashed contacts
  • Lockable test button
  • LED indication
  • 55.32 DPDT/10A 12/24V DC, 12/24/110/230V AC
  • 55.34 4PDT/7A 12/24V DC, 12/24/110/230V AC
    other voltages on request

Timer Module Options
Used in conjunction with 94.02 & 94.04 bases
  • 86.30 - Delay on/delay-off timer, 12-24V AC/DC
  • 86.00 - Multifunction timer, 12-240Vac

Relay bases
  • 94.02 - Base for 55.32 relay with retaining clip
  • 94.04 - Base for 55.34 relay with retaining clip
 55+94
50 Series
56 series data sheet
86 series data sheet
56 Series General Purpose Relays
Flat-pin style Ag/Ni contacts
  • Lockable test button
  • LED indication
  • 56.32 DPDT/12A 12/24V DC, 12/24/110/230V AC
  • 55.34 4PDT/7A 12/24V DC, 12/24/110/230V AC
    other voltages on request

Timer Module Options
Used in conjunction with 96.02 & 96.04 bases
  • 86.30 - Delay on/delay-off timer, 12-24V AC/DC
  • 86.00 - Multifunction timer, 12-240Vac

Relay bases
  • 96.02 - Base for 56.32 relay with retaining clip
  • 96.04 - Base for 56.34 relay with retaining clip
 56+96
60 Series
60 series data sheet
86 series data sheet
60 Series General Purpose Relays
  • Round-pin style
  • Lockable test button
  • LED indication
  • 60.12 DPDT/10A 8-pin. 12/24V DC, 12/24/110/230V AC
  • 60.13 3PDT/10A 11-pin. 12/24V DC, 12/24/110/230V AC

Timer Module Options
Used in conjunction with 90 series bases
  • 86.30 - Delay on/delay-off timer, 12-24V AC/DC
  • 86.00 - Multifunction timer, 12-240Vac

Relay bases
  • 90.02 - 8 pin base for 60.12
  • 90.03 - 11 pin base for 60.13
 56+96
62 Series
Data sheet
62 Series Power Relays
  • PCB & Faston 250 connections (6.3mm)
  • 16A 250Vac contact rating
  • DPDT & 3PDT
  • 230Vac & 12V, 24V DC

Relay base
  • 92.13 - PCB mount
60 Series
Data sheet
65 Series Power Relays
  • Rear flange mount
  • Faston 250 connections (6.3mm)
  • SPNO/30A
  • 24V, 230V AC & 24V DC
60 Series
Data sheet
66 Series Power Relays
  • Flange mount
  • Faston 250 connections (6.3mm)
  • DPDT/30A
  • 12V, 24V AC/DC & 110V, 230V AC
22.32 Series Contactors
Data sheet
22.32 25A Modular Contactors
  • DIN rail mount, 17.7mm wide
  • 2x25A contacts, resistive & inductive load options
  • Double break contacts, NO gap ≥3mm
  • 2xNO or 1xNO & 1xNC
  • 24V ac/dc & 230Vac coils
22.34 Series Contactors
Data sheet
22.34 25A Modular Contactors
  • DIN rail mount, 35mm wide
  • 4x25A contacts, resistive & inductive load options
  • Double break contacts, NO gap ≥3mm
  • 4xNO or 2xNO NO & 2xNC
  • 24V ac/dc & 230Vac coils
22.44 Series Contactors
Data sheet
22.44 40A Modular Contactors
  • DIN rail mount, 35mm wide
  • 4x40A contacts resistive loads
  • Double break contacts, NO gap ≥3mm
  • High inrush currents to 176A
  • NO & NC options
  • 24V ac/dc & 230Vac coils
22.64 Series Contactors
Data sheet
22.64 63A Modular Contactors
  • DIN rail mount, 35mm wide
  • 4x63A contacts resistive loads
  • Double break contacts, NO gap ≥3mm
  • High inrush currents to 240A
  • NO & NC options
  • 24V ac/dc & 230Vac coils
71.01 SSR
Data sheet
77.01 Solid State Relay
DIN rail mounted zero crossing SSR.
Suitable for CFL and energy-saving lamps, solenoids, heater control and contactor drivers.
  • 60-240Vac/5A load
  • Control input 24V ac/dc (9.8-32Vdc/16-32Vac) or 110-230Vac
  • 5kV isolation beween input & output
  • 17.5mm wide
71.11 SSR
Data sheet
77.11 Solid State Relay
DIN rail mounted zero crossing SSR.
Suitable for CFL and energy-saving lamps, solenoids, heater control and contactor drivers.
  • 24-280Vac/15A load
  • Control input 4-32Vdc or 40-305Vac
  • 6kV isolation beween input & output
  • 22.5mm wide
71.31 SSR
Data sheet
77.31 Solid State Relay
DIN rail mounted zero crossing SSR.
Suitable for CFL and energy-saving lamps, solenoids, heater control and contactor drivers.
  • 60-440Vac/30A load
  • Control input 4-32Vdc or 40-280Vac
  • 6kV isolation beween input & output
  • 22.5mm wide
71.25 SSR
Data sheet
77 Series Hockey Puck Solid State Relays
Standard hockey puck size zero crossing SSR with terminal cover.
Variations:
  • 77.25-024-8250 3-32Vdc control, 24-240Vac/25A load
  • 77.25-024-8650 3-32Vdc control, 48-600Vac/25A load
  • 77.25-230-8250 90-280Vac control, 24-240Vac/25A load
  • 77.25-230-8650 90-280Vac control, 48-600Vac/25A load

  • 77.45-024-8250 3-32Vdc control, 24-240Vac/40A load
  • 77.45-024-8650 3-32Vdc control, 48-600Vac/40A load
  • 77.45-230-8250 90-280Vac control, 24-240Vac/45A load
  • 77.45-230-8650 90-280Vac control, 48-600Vac/45A load

  • 77.55-024-8250 3-32Vdc control, 24-240Vac/50A load
  • 77.55-024-8250 3-32Vdc control, 48-600Vac/60A load
  • 77.55-230-8250 90-280Vac control, 24-240Vac/50A load
  • 77.55-230-8650 90-280Vac control, 48-600Vac/60A load

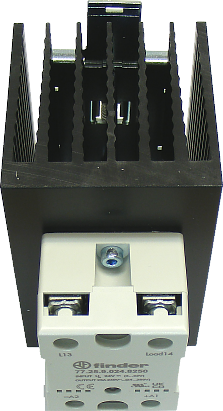

Heat sink 077.25 Solid State Relay Accessories
Heat sink 077.25 2°C/W, for SSR up to 25A.

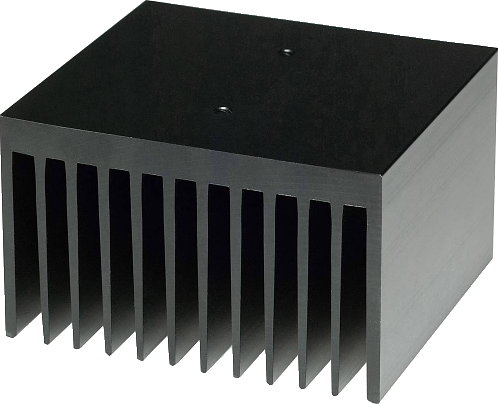

Heat sink 077.55 0.9°C/W, for SSR 40A & 50A.
Silicone heat sink paste.
Heat sink thermal pads.
13 Series
Data sheet
13.01 Selectable Stepping/Monostable Relays
  • DIN rail mount
  • 16A SPDT contact
  • 24V AC/DC, 230V AC
13 Series
Data sheet
13.11 Call Relay with Reset Command
  • DIN rail mount
  • 12A SPST-NO contact
  • 230Vac
13 Series
Data sheet
13.31 Interposing Monostable Relay
  • Fits inside flush box
  • 12A SPNO contact
  • 24Vdc & 12V, 230V AC
13 Series
Data sheet
13.61 DIN Rail Mount Electronic Step Relay
  • DIN rail mount, 17.5mm wide
  • 16A SPST-NO contact
  • Multifunction - step, timed latching, monostable
  • 230Vac
13.81
Data sheet
13.81 DIN Rail Mount Electronic Stepping (latching) Relays
  • DIN rail mount
  • 16A SPST-NO contact
  • 230Vac
13.91
Data sheet
13.91 Electronic Stepping (latching) Relay
with Timed Step (10min)
  • Fits inside flush box
  • 10A 230Vac SPNO contact
  • 230Vac
20 Series
Data sheet

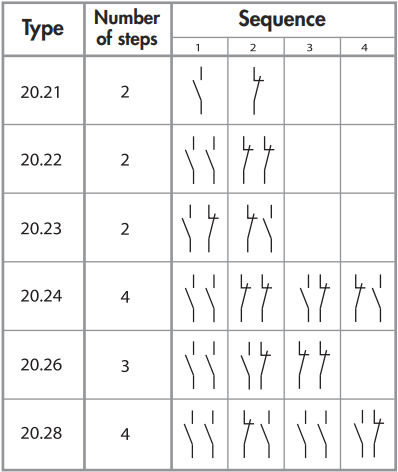

20 Series Stepping/Latching Relays
  • DIN rail mount
  • Two 16A contacts
  • Options 2 x NO, 1 x NO & 1 x NC or 2 x NC
  • 12V, 24V DC & 12V, 24V, 110V, 230V AC
22 Series
Data sheet
22.2x 20A Monostable Relays
  • DIN rail mount
  • Two 20A contacts
  • Options 2xNO or 1xNO & 1xNC
  • 12V, 24V DC & 12V, 24V, 110V, 230V AC
22 Series
Data sheet
26 Surface Mount Electromechanical Stepping/Latching Relays
  • Two 10A contacts
  • 12V, 24V, 110V & 230V AC
  • Adaptors for DC operation:
    • 026.9.012 for 12Vdc operation with 12Vac relay
    • 026.9.024 for 24Vdc operation with 24Vac relay
  • Variations:
    • 26.02 2 x NO contacts
    • 26.03 1 x NO & 1 x NC contacts
15.91 Relay
Data sheet
15.91 Electronic Step Relay & Dimmer
Lamp control from a single momentary switch.
  • For mounting within residential switch boxes
  • Maximum lamp load 100W
  • Soft on & off transitions
  • Two operating modes
  • Smooth dimming up & down
  • Compatible with LED dimmable lamps
15.51 Relay
Data sheet
15.51 Electronic Step Relay & Dimmer
Lamp control from a single momentary switch.
  • For Box or panel mounting
  • Maximum lamp load 400W
  • Soft on & off transitions
  • Two operating modes
  • Previous light level memory
  • Trailing edge dimming method
15.10 Relay
Data sheet
15.10 Master Dimmer, Multifunction Dimmer
10.11 Slave Dimmer
Master Plus Slave(s) system for dimming multiple lighting loads.
15.10 Master accepts input from a push button & outputs a dimming signal to control upto 32 x 15.11 slave dimmers.
15.11 Slave accepts a dimming signal from a 15.10 Master or any other dimmer with a
0-10V/1-10V output.
  • 17.5mm modular DIN rail mount
  • Soft on & off transitions
  • Linear dimming
  • Leading & trailing edge dimming
  • Optional previous light level memory
  • Compatible with energy saving dimmable lamps
15.81 Relay
Data sheet
15.81 Electronic Step Relay & Dimmer
Lamp control from a single momentary switch.
  • 17.5mm modular DIN rail mount
  • Maximum lamp load 500W
  • Multifunction
  • Soft on & off transitions
  • Leading & trailing edge dimming
  • Previous light level memory
  • Compatible with energy saving dimmable lamps
72.42
Data sheet
72.42 Priority Change Relay
Special relay for alternating loads.
For applications with pumps, compressors, air conditioning & refrigeration units.
  • Two independent NO 12A contacts
  • 4 functions
  • Two independent isolated control signals
  • 110-240Vac & 24V AC/DC supplies
