Light Control, Daylight Switches & PIR
|
|
 |
Light Control &
Light Dependent Relays
Manufactured by Finder
|
|
|
|

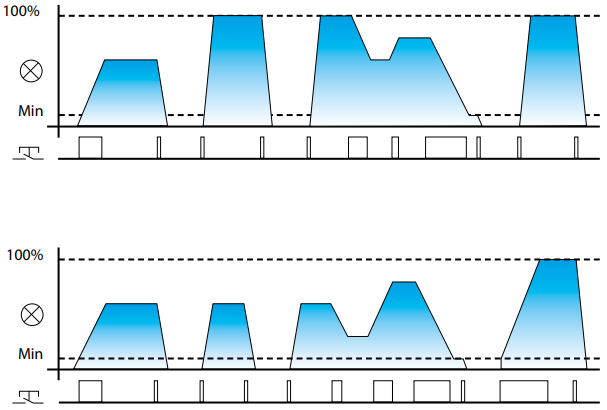

15.91 Electronic Step Relay & Dimmer
Lamp control from a single momentary switch.
- For mounting within residential switch boxes
- Maximum lamp load 100W
- Soft on & off transitions
- Two operating modes
- Smooth dimming up & down
- Compatible with LED dimmable lamps
|
|
|
|
|

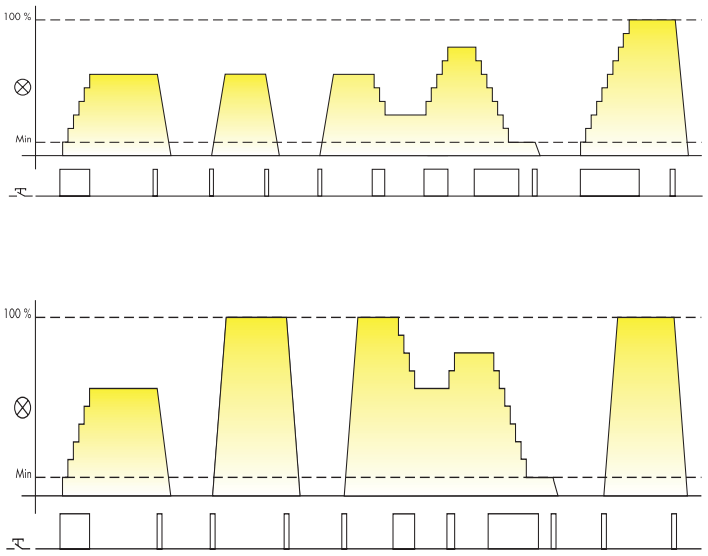

15.51 Electronic Step Relay & Dimmer
Lamp control from a single momentary switch.
- For Box or panel mounting
- Maximum lamp load 400W
- Soft on & off transitions
- Two operating modes
- Previous light level memory
- Trailing edge dimming method
|
|
|
|
|

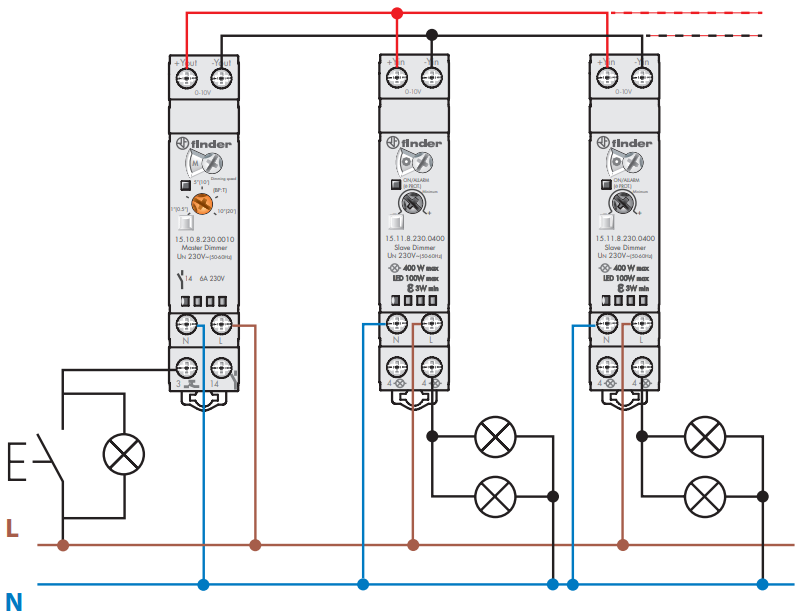

15.10 Master Dimmer, Multifunction Dimmer
10.11 Slave Dimmer
Master Plus Slave(s) system for dimming multiple lighting loads.
15.10 Master accepts input from a push button & outputs a dimming signal to control upto 32 x 15.11 slave dimmers.
15.11 Slave accepts a dimming signal from a 15.10 Master or any other dimmer with a
0-10V/1-10V output.
- 17.5mm modular DIN rail mount
- Soft on & off transitions
- Linear dimming
- Leading & trailing edge dimming
- Optional previous light level memory
- Compatible with energy saving dimmable lamps
|
|
|
|
|

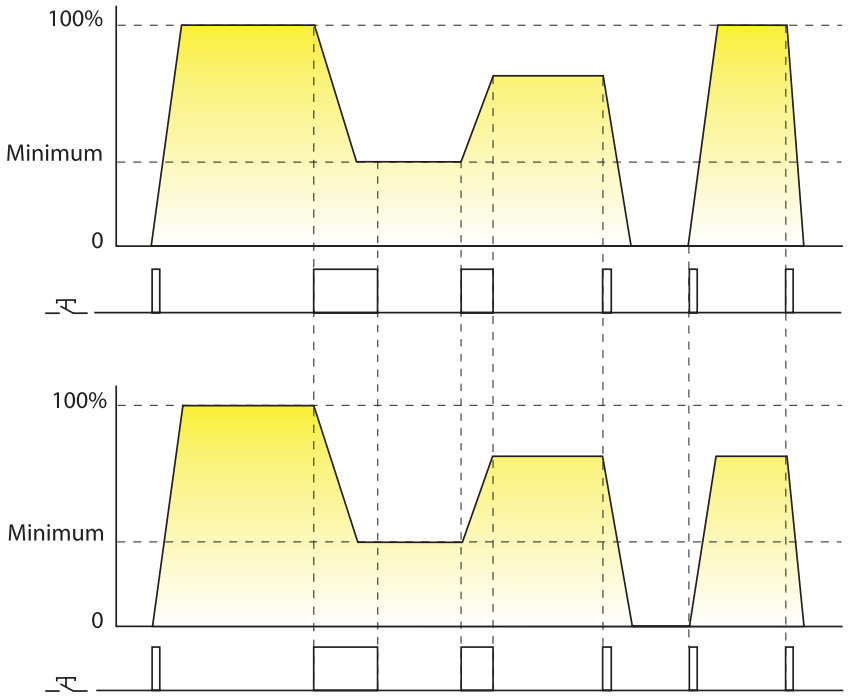

15.81 Electronic Step Relay & Dimmer
Lamp control from a single momentary switch.
- 17.5mm modular DIN rail mount
- Maximum lamp load 500W
- Multifunction
- Soft on & off transitions
- Leading & trailing edge dimming
- Previous light level memory
- Compatible with energy saving dimmable lamps
|
|
|
|
|
11.01 Light Dependent Relay
- Separate photoelectric sensor
- Zero hysteresis for energy saving
- Range from 1 to 1000 Lux in 2 ranges
- Supply 230Vac
- DIN rail mount, 35mm wide
- Relay SPDT, 16A 250Vac
- -20°C to +50°C operation
|
Light sensor
|
|
|
|
|
11.31 Light Dependent Relay
- External photoelectric sensor
- Adjustable sensitivity 1-100 Lux
- Supply 230Vac & 24V AC/DC
- DIN rail mount, 17.5mm wide
- Relay NO 16A 250Vac
- -20°C to +50°C operation
|
|
Light sensor
|
|
|
|
|
11.42 Light Dependent Relay
- Two independant outputs with individual Lux settings
- Separate photoelectric sensor
- Standard range 1-80 Lux, high range 20-1000 Lux
- Supply 230Vac
- DIN rail mount, 35mm wide
- One CO & one NO relay, 12A 250Vac
- -20°C to +50°C operation
|
IP65 light sensor
for 11.42 & 11.91
|
|
|
|
|
11.71 Daylight Switch
- Complete with sensor
- Adjustable Lux setting, 1-100 Lux (switch on)
- Supplies 12V & 24V AD/DC
- DIN rail mount, 35mm wide
- CO 16A 250Vac contact
- -20°C to +60°C operation
|
|
|
|
11.91 Light Dependent Relay Plus Time Switch
- Daily time switch, programmable to inhibit output
- Sensitivity adjustment 2-150 Lux
- LCD status indication, set-up & programming
- Supply 230Vac
- DIN rail mount, 35mm wide
- Relay CO 16A 250Vac
- -20°C to +50°C operation
|
|
|
|
|
10.41 Light Dependent Relay
- Pole or surface mount
- Adjustable 1 to 50 Lux
- Supply 230Vac
- Relay NO, 12A 230Vac
- -30°C to +70°C operation
- IP54 protection
|
|
|
|
10.61 Daylight Switch
- 230Vac supply
- Fixed sensitivity, 20 Lux +/-20%
- Supply 230Vac
- Relay NO, 16A 230Vac
- -30°C to +70°C operation
- IP54 protection
|
|
18.01 PIR sensor
18.11 PIR sensor
|
Finder 18 Series Infra-Red (PIR) Movement Detectors
Detect body heat & movement to control lighting etc.
- Models for internal & external applications
- Ceiling, flush mount & wall mounted models
- Wide surveillance angle
- Adjustable ambient light threshold
- Adjustable light on time
- NO 10A 230Vac contacts
- Models:
- 18.01-230 - IP40 internal use
- 18.11-230 - IP54 external use
- 18.21-230 - internal ceiling surface mount
- 18.31-230 - internal ceiling recessed mounting
|
18.21 PIR sensor
18.31 PIR sensor
|
|
|
|
Data sheet
