Crydom Solid State Relays
Solid State Relays
Manufactured by Crydom Inc.

Protecting AC output Solid State Relays against voltage transients

ED Series
AC load data sheet
DC load data sheet

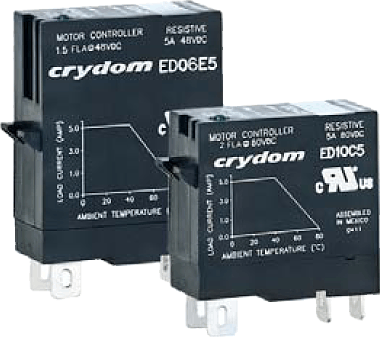

EDxx Solid State Relays
  • Plug-in DIN Rail mounting
  • 12.6mm wide
  • Industry standard EMR plug-in package
  • 5A switching
  • Zero volt turn on (ac switching)
  • LED indicator
  • Variations:
    • SSR-ED06C5 18-32Vdc control, 1-48Vdc/5A load
    • SSR-ED06E5 18-36Vac control, 1-48Vdc/5A load
    • SSR-ED24C5 18-32Vdc control, 24-280Vac/5A load
    • SSR-ED24E5 18-36Vac control, 24-280Vac/5A load
DRSED socket
SSR-DRSED DIN rail mounting base for ED series.
Complete with retaining clip.

DC Series
Data sheet

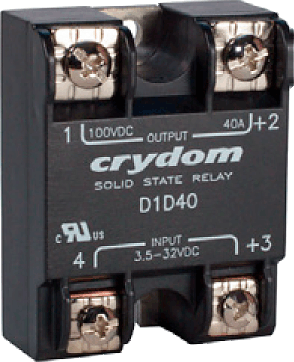

DC Solid State Hockey Puck Relays
  • MOSFET output
  • Fast switching
  • LED indicator
  • Variations:
    • SSR-D1D12 3.5-32Vdc control, 1-100Vdc/12A load
    • SSR-D1D20 3.5-32Vdc control, 1-100Vdc/20A load
    • SSR-D1D40 3.5-32Vdc control, 1-100Vdc/40A load
    • SSR-D1D60 3.5-32Vdc control, 1-100Vdc/60A load

CKR Series
CKR24 data sheet
CKR60 data sheet

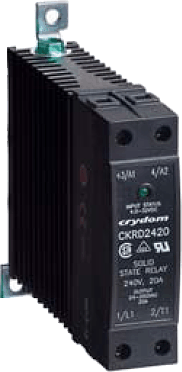

CKRD Solid State Relays
  • DIN Rail mounting with integrated heatsink
  • 22.5mm wide
  • Up to 30A switching
  • Zero volt turn on
  • LED indicator
  • Variations:
    • SSR-CKRD2420 4-32Vdc control, 24-280Vac/20A load
    • SSR-CKRD2430 4-32Vdc control, 24-280Vac/30A load
    • SSR-CKRD6020 4-32Vdc control, 48-660Vac/20A load
    • SSR-CKRD6030 4-32Vdc control, 48-660Vac/30A load

    • SSR-CKRA2420 110-280Vac control, 24-280Vac/20A load
    • SSR-CKRA2430 110-280Vac control, 24-280Vac/30A load
    • SSR-CKRA6020 110-280Vac control, 48-660Vac/20A load
    • SSR-CKRA6030 110-280Vac control, 48-660Vac/30A load

CMR Series
CMR24 data sheet
CMR60 data sheet

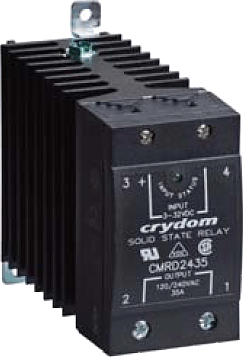

CMRD Solid State Relays
  • DIN Rail mounting with integrated heatsink
  • 45mm wide
  • Up to 65A switching
  • Zero volt turn on
  • LED indicator
  • Variations:
    • SSR-CMRD2435 4-32Vdc control, 24-280Vac/35A load
    • SSR-CMRD2445 4-32Vdc control, 24-280Vac/45A load
    • SSR-CMRD2455 4-32Vdc control, 24-280Vac/55A load
    • SSR-CMRD2465 4-32Vdc control, 24-280Vac/65A load

    • SSR-CMRD6035 4-32Vdc control, 48-660Vac/35A load
    • SSR-CMRD6045 4-32Vdc control, 48-660Vac/45A load
    • SSR-CMRD6055 4-32Vdc control, 48-660Vac/55A load
    • SSR-CMRD6065 4-32Vdc control, 48-660Vac/65A load

DCR3P Series
Brochure
Installation sheet

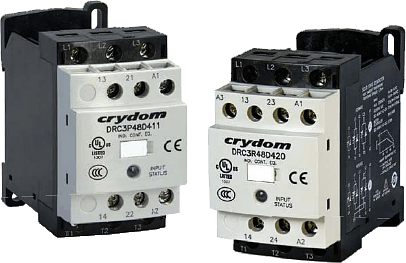

DCR3P Three Phase Solid State Contactors
  • DIN Rail mounting with integrated heatsink
  • 5A, 48-530Vac load voltage
  • Additional auxiliary contacts, 2xNO or 1xNO & 1xNC
  • Zero volt turn on
  • 230Vac (208-265Vac) or 24V ac/dc (18-30V ac/dc) control
  • LED indicator
  • Variations:
    • DRC3P48A411 230Vac control, 3-phase plus 1xNO & 1xNC aux contact
    • DRC3P48A420 230Vac control, 3-phase plus 2xNO aux contact
    • DRC3P48D411 24V ac/dc control, 3-phase plus 1xNO & 1xNC aux contact
    • DRC3P48D420 24V ac/dc control, 3-phase plus 2xNO aux contact

CW Series SSR
Data sheet

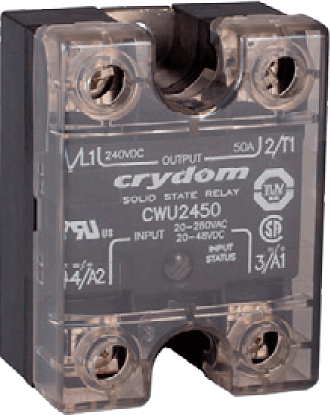

Crydom CW Series Hockey Puck Solid State Relays
Standard hockey puck size zero crossing SSR with LED indicator & safety cover.
Variations:
  • SSR-CWD2410 3-32Vdc control, 24-280Vac/10A load
  • SSR-CWD2425 3-32Vdc control, 24-280Vac/25A load
  • SSR-CWD2450 3-32Vdc control, 24-280Vac/50A load
  • SSR-CWD2490 3-32Vdc control, 24-280Vac/90A load
  • SSR-CWD24125 3-32Vdc control, 24-280Vac/125A load

  • SSR-CWA2410 100-280Vac control, 24-330Vac/10A load
  • SSR-CWA2425 100-280Vac control, 24-330Vac/25A load
  • SSR-CWA2490 100-280Vac control, 24-330Vac/90A load
  • SSR-CWA24125 100-280Vac control, 24-330Vac/125A load

  • SSR-CWA2425E 18-36Vac control, 24-280Vac/25A load
  • SSR-CWA2450E 18-36Vac control, 24-280Vac/50A load
  • SSR-CWA2490E 18-36Vac control, 24-280Vac/90A load

53TP Series
Brochure
53TP Series Three Phase Solid State Relays
  • Panel mounting
  • 25A & 50A, 48-530Vac load voltage
  • SCR output for heavy industrial loads
  • Built in transient protection
  • Zero volt turn on
  • 4-32Vdc or 180-280Vac control
  • LED indicator

CTRD6025
Brochure
CTR Series Three Phase Solid State Relays
  • DIN rail mounting with integrated heatsink
  • 25A, 48-600Vac load voltage
  • SCR output for heavy industrial loads
  • Built in TVS over voltage protection
  • Zero volt turn on
  • LED indicator
  • Variations:
    • SSR-CTRD6025 4-32Vdc control, 25A per leg 48-600Vac
    • SSR-CTRC6025 180-280Vac control, 25A per leg 48-600Vac
