Autonics Solid State Relays
Solid State Relays
Manufactured by Autonics

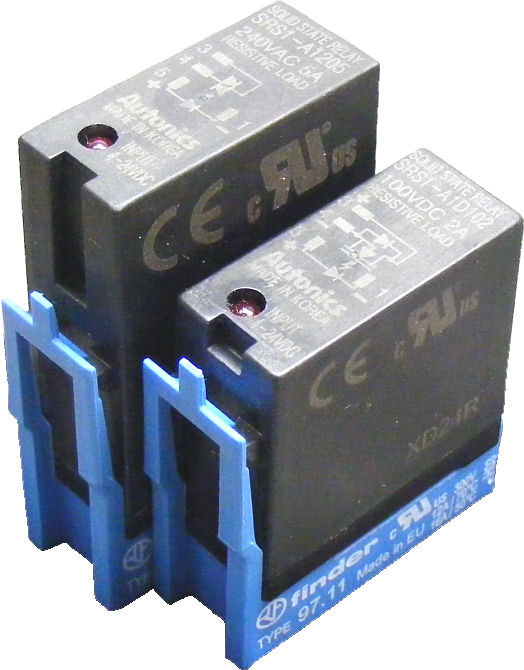

SRS1 Series
Data sheet
SRS1-A1205 5A 24-240Vac & SRS1-A1D102 2A 5-100Vdc Solid State Relays
The SRS1 series socket type single phase solid state relays offer easy installation & maintenance.
  • Plug-in, DIN Rail mounting relay socket
  • 13mm wide
  • Industry standard EMR plug-in package
  • High dielectric strength 2.5kVAC
  • Zero volt turn on (ac switching)
  • LED indicator
  • Stocked variations:
    • SRS1-A1205 5A 24-240Vac, 4-24Vdc control zero voltage turn on
    • SRS1-A1D102 2A 5-100Vdc, 4-24Vdc control

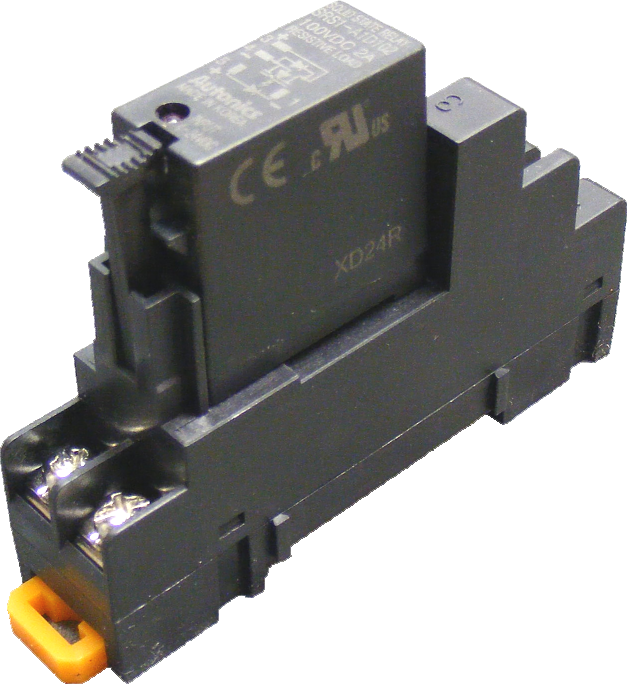

SK-G05 socket
SK-G05 DIN rail mounting base for SRS1 series.
SR1 Series
Data sheet
SR1 Series Hockey Puck Solid State Relays
SR1-1250-N single phase 50A 24-240Vac, 4-30Vdc control.
SR1-4225-N single phase 25A 24-240Vac, 90-240Vac control.
Universal design with detachable heatsink for flexible installation.
  • Zero voltage turn on
  • LED indicator
  • High heat dissipation efficiency with ceramic PCB

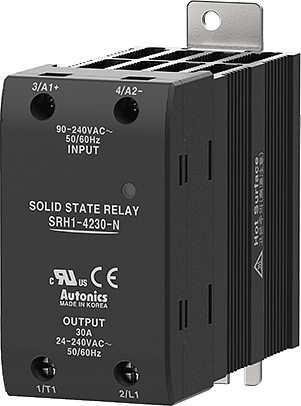

SRH1 Series
Data sheet
SRH1 Series Solid State Relays
Single phase solid state relays with integral heatsinks.
  • Both DIN Rail mounting or panel mounting options
  • Top/bottom terminal layout for easy installation
  • Zero volt turn on
  • LED indicator
  • Stocked variations:
    • SRH1=1430-N 30A 48-480Vac, 4-30Vdc control
    • SRH1=1460-N 60A 48-480Vac, 4-30Vdc control

    • SRH1=2220-N 20A 24-240Vac, 24Vac control
    • SRH1=2230-N 30A 24-240Vac, 24Vac control
    • SRH1=2240-N 40A 24-240Vac, 24Vac control
    • SRH1=2260-N 60A 24-240Vac, 24Vac control

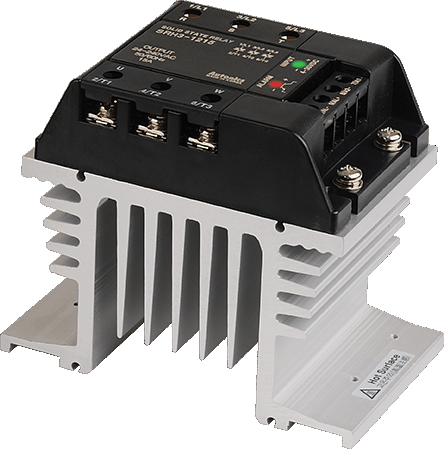

SRH3 Series
Data sheet
SRH3 Series Solid State Relays
Three phase solid state relays with integral heatsinks.
  • Both DIN Rail mounting or panel mounting options
  • Top/bottom terminal layout for easy installation
  • Zero volt turn on
  • LED indicator
  • Stocked variations:
    • SRH3=1430-N 3PH/30A 48-480Vac, 4-30Vdc control
    • SRH3=1450-N 3PH/50A 48-480Vac, 4-30Vdc control
    • SRH3=1475-N 3PH/75A 48-480Vac, 4-30Vdc control

    • SRH3=2430-N 3PH/30A 48-480Vac, 24Vac control
    • SRH3=2450-N 3PH/50A 48-480Vac, 24Vac control
    • SRH3=2475-N 3PH/75A 48-480Vac, 24Vac control

    • SRH3=4430-N 3PH/30A 48-480Vac, 90-240Vac control
    • SRH3=4450-N 3PH/50A 48-480Vac, 90-240Vac control
    • SRH3=4475-N 3PH/75A 48-480Vac, 90-240Vac control
