Panasonic Programmable Controllers
|
|
 |
Programmable Controllers
Manufactured by Panasonic
|
|
|
|
FP0R Series Programmable Controllers
Ultra compact controllers with program capacity from 16k to 32k steps & expandable I/O.
- Size W30mm x H90mm x D60mm
- 24Vdc supply
- Relay, NPN & PNP output options
- I/O from 10 to 128
- RS232, RS485 serial port option
- Real time clock option
- Analogue I/O expansion modules
- 14 bit analog resolution
- USB tool port
|
|
|
FP0R Series - Controllers

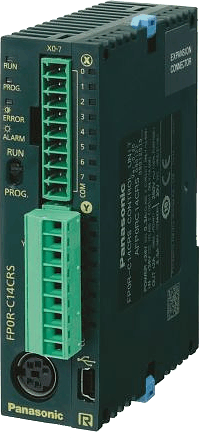

- FP0R-C14CRS - 8 inputs, 6 relay outputs with RS232 comms
- FP0R-C16T - 8 inputs, 8 NPN outputs

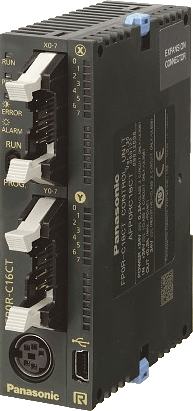

- FP0R-C16CT - 8 inputs, 8 NPN outputs with RS232 port
- FP0R-C32P - 16 inputs, 16 PNP outputs
- FP0R-C32T - 16 inputs, 16 NPN outputs
- FP0R-T32CT - 16 inputs, 16 PNP outputs, real time clock & RS232 port
- FP0R-C14MRS - 8 inputs, 6 relay outputs & Modbus RTU
- FP0R-C16P - 8 inputs, 8 PNP outputs
|
|
|
|
FP0R Series - Expansion Units
- FP0R-E16RS-A - 8 inputs, 8 relay outputs
- FP0R-E8RS-A - 4 inputs, 4 relay outputs
- FP0R-E32T - 16 inputs, 16 NPN outputs
- FP0R-A21 - 2 inputs, 1 output

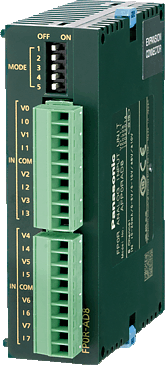

- FP0R-AD8 - 8 input A/D converter
- FP0R-E32P - 16 inputs, 16 PNP outputs
|
|
|
|
FP0H Series Programmable Controllers
Compact controllers with program capacity from 24k to 64k steps
- Compact design
- High speed operation
- Built in Ethernet ports
- FTP server-client function
- Various network protocols
- 24Vdc supply
FP0H Series - Controllers
- FP0H-C32EP
- CPU 64k steps
- 2 x Ethernet ports, 10/100MBit
- SD card
- 16 inputs, 16 PNP outputs
- COM port RS232
|
|
|
|

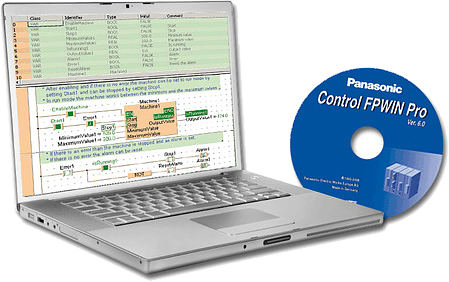

Download Control FPWIN Pro7
Universal software to for all Panasonic PLC’s
The Panasonic programming software developed according to the international standard IEC 61131-3.
|
|
|

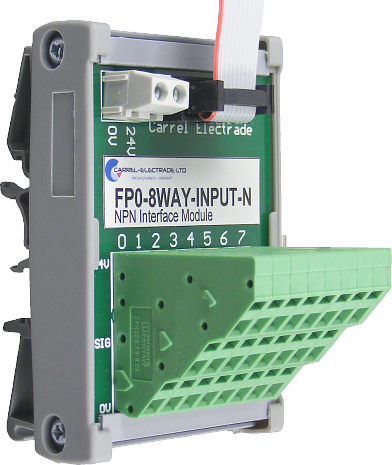

FP0-8WAY-INPUT-N & FP0-8WAY-INPUT-P Input Interface Modules
The FP0 PLC 8 Way Interface Modules provide an interface for 8 inputs with supply & 0V terminals for each of the 8 inputs on a 3 level by 8 way spring-cage connection terminal.
It is designed to interface with the FP0 range of PLCs via 10 way ribbon cable and IDC connectors.
The Module comes in two variations, one to interface the FP0 inputs with NPN outputs & the other to interface the FP0 inputs with PNP outputs.
|
|
|
FP0-16WAY-OP-P FP0 Output Interface Module
The FP0 PLC 16 Way Interface Module is designed to interface with the Panasonic FP0 range of PLCs via 10 way ribbon cables & IDC connectors.
The module provides 16 PNP outputs from the connected FP0 PLC.
The 16 outputs are accessed via a 3 level by 8 way spring-cage connection terminal. 8 common 0V connections are also available on the spring-cage connector.
|
|
|

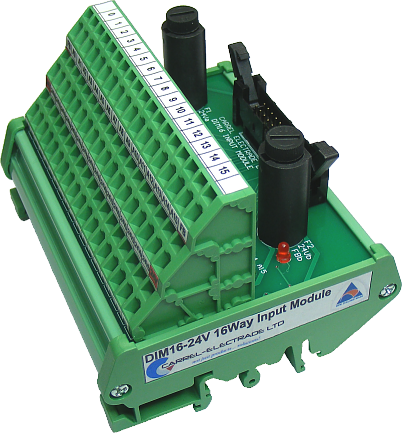

DIM16-24V 16 Way Digital Input Module
The DIM16-24V digital input module has a three tier spring clamp terminal block.
Top row for 16 active high inputs plus two fuse blown (FB) outputs.
The middle row is fused 24V supplies & the bottom row is 0V supply terminals.
Output is via a 20 way ribbon cable connector.
|
|
|

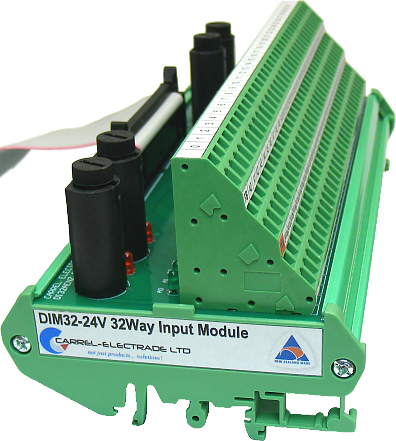

DIM32-24V 32 Way Digital Input Module
The DIM32-24V digital input module has a three tier spring clamp terminal block.
Top row for 32 active high inputs plus two fuse blown (FB) outputs.
The middle row is fused 24V supplies & the bottom row is 0V supply terminals.
Output is via a 40 way ribbon cable connector.
|
|
|
|
Data sheet
