Model Series CEQ
High quality switchboard instruments
|

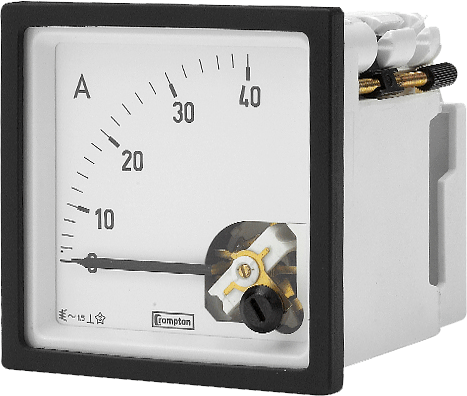

| CEQ72 72x72mm Ammeters & Voltmeters

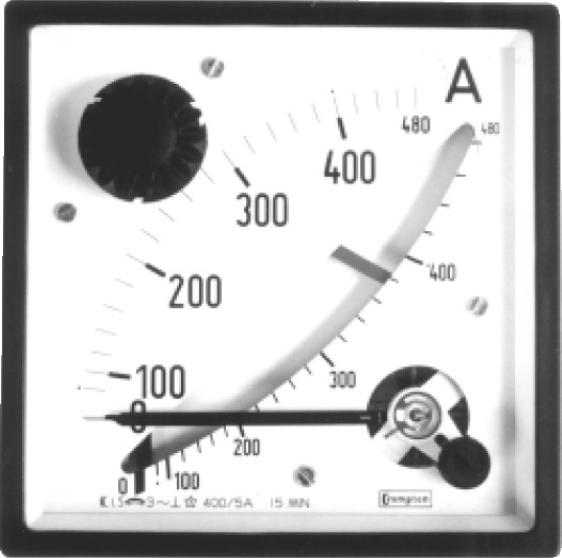

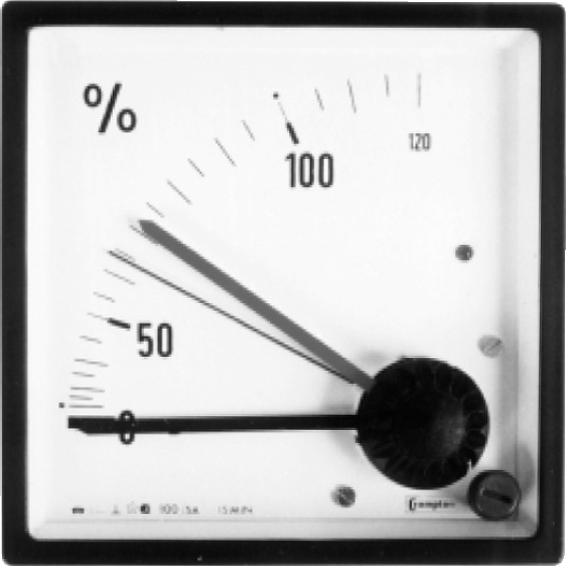

CEQ96 96x96mm Ammeters & Voltmeters
90° quadrant scale
Class 1.5 accuracy
Ammeter standard ranges from 1A to 100A direct connect
With external CT .../1A or .../5A
Standard 2x overscale
Voltmeter standard ranges 250V and 500V
With external VT .../110V
Ammeters/Voltmeters manufactured to order
Ammeters 100mA to 100A
Voltmeters 6V to 750V
|
Data sheet.
