Panel Meters
|
|
 |
Digital Panel Meters
Manufactured by Autonics Corporation Korea
|
|
| |
Model MX4W
|
|
Model MX4W Series Digital Panel Meters
Compact panel mount - 96mm x 48mm, 20mm rear depth
Large LED display, 19mm digits -9999 to 9999
12-segment alphanumeric characters
Voltage AC/DC 50mV to 500V
Current AC/DC 2mA to 5A
AC frequency 0.1Hz to 1200Hz
Programmable offset & pre-scale functions
Programmable decimal point
Wide range supply 24-240V AC/DC
|
|
| |
Model M4YS
|
|
Model M4YS-NA Digital 4-20mA Loop Powered Scaling Meter
Panel mount - 72 x 36mm
4 digit LED display, display range -1999 to 9999
Input 4-20mA
Programmable offset & pre-scale functions
Programmable decimal point
Error function, display flashes LLLL/HHHH
Supply from 4-20mA current loop, <7V drop
|
|
| |
Model MT4N
|
|
Model MT4N Multifunction Digital Panel Meters
Panel mount - 48 x 24mm
4 digit LED display (9mm), display range -1999 to 9999
Input range -10% up to 110% of selected range
Programmable, pre-scale with offset & scaling functions
Programmable 3 colour display red, green & yellow
AC models MT4N-AV-EN & MT4N-AC-EN can do frequency measurement
0.1Hz to 999Hz in 4 ranges, fixed decimal point
Supply 12 to 24V ac/dc 5VA/3W
Model MT4N-DV-EN DC voltmeter, ranges from 50mV to 50V
Model MT4N-DA-EN DC ammeter, ranges from 2mA to 500mA
Model MT4N-AV-EN AC voltmeter, ranges from 2.5V to 250V
Model MT4N-AA-EN AC ammeter, ranges from 50mA to 5A
|
|
| |
Model MT4W
|
|
Model MT4W Multifunction Digital Panel Meters
Panel mount - 96 x 48mm
4 digit LED display (14mm), display range -1999 to 9999
Programmable rms or average on AC meters
Programmable, pre-scale with offset & scaling functions
AC models MT4W-AV & MT4W-AC can do frequency measurement
0.1Hz to 999Hz in 4 ranges, fixed decimal point
Sampling rate 50ms(DC) 16.6ms/20ms(AC 60Hz/50Hz)
Supplies 100 to 240V ac 5VA 50/60Hz, 12 to 24V dc 5W
Model MT4W-DV DC voltmeter, ranges from 50mV to 500V
Model MT4W-DA DC ammeter, ranges from 2mA to 5A
Model MT4W-AV AC voltmeter, ranges from 1V to 500V
Model MT4W-AA AC ammeter, ranges from 50mA to 5A
|
|
| |
Model MP5W
|
|
Model MP5W Digital Pulse Meter/Frequency Meter
Panel mount - 96 x 48mm
5 digit LED display
Selectable input sensors, PNP/NPN
Operational modes include: speed, frequency revolution, absolute rate,
passing time, time width, time difference, interval & calculation
Supply 100 to 240V ac 6VA 50/60Hz
|
|
| |

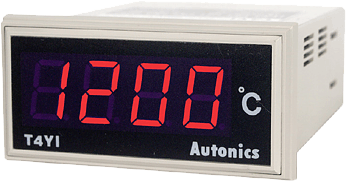

Model T4YI
|
|
Model T4YI Digital Temperature Indicator
Panel mount - 72 x 36mm
4 digit LED display
Pt100 sensor
-99.9°C to 199.9°C
Supply 100 to 240V ac 3VA 50/60Hz
|
| |
Model T4WM
|
|
Model T4WM 5 Input Digital Temperature Indicator
Panel mount - 96 x 48mm
Automatic or manual display of each input
4 digit LED display
Pt100, type K & J thermocouples
- Pt100 -99.9 to 199.9°C or 0 to 399.9°C
- Type K 0 to 1200°C
- Type J 0 to 500°C
Accuracy F.S. ±0.5% rdg ±1digit
Supply 100 to 240V ac 3VA 50/60Hz |
|
|
|
