Touch Screens
Human Machine Interface
Touch Screens & HMI Devices
from Panasonic

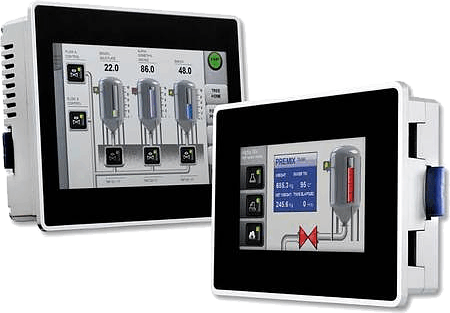

The HM500 series combine state of the art features & top performance.
Rugged all metal housing, colour TFT display with LED back lighting.
Screen sizes 7" 800 x 480 WVGA, 10.4" 800 x 600 SVGA & 13.3" 1200 x 800 WXGA.

The HM500 series screens are programmed with HMWin software.
Simple intuitive graphical programming.

HM500 Series Brochure
HM500 Instruction Manual
HM507
HM507 - Touch Screen Operator Interface.
  • 7" TFT wide color display
  • Resolution 800 x 480 dots (WVGA), 64k colours
  • Resistive touchscreen
  • Protection class IP66 (front)
  • 128MB flash user memory
  • 2 Ethernet ports with integrated switch
  • 2 USB ports with host interface
  • SD card slot
  • Serial port software configurable: RS232C/RS422/RS485
  • Width 187mm height 147mm
HM510
HM510 - Touch Screen Operator Interface.
  • 10.4" TFT wide color display
  • Resolution 800 x 600 dots (SVGA), 64k colours
  • Resistive touchscreen
  • Protection class IP66 (front)
  • 256MB flash user memory
  • 2 Ethernet ports with integrated switch
  • 2 USB ports with host interface
  • SD card slot
  • Serial port software configurable: RS232C/RS422/RS485
  • PDF reader
  • Width 287mm height 232mm
HM513
HM513 - Touch Screen Operator Interface.
  • 13.3" TFT wide color display
  • Resolution 1200 x 800 dots (WXGA), 64k colours
  • Resistive touchscreen
  • Protection class IP66 (front)
  • 256MB flash user memory
  • 2 Ethernet ports with integrated switch
  • 2 USB ports with host interface
  • SD card slot
  • Serial port software configurable: RS232C/RS422/RS485
  • PDF reader
  • Width 336mm height 267mm
HMWIN
HMWin Programming Software.
HMWin is a powerful and versatile tool for designing HMI applications.
The software is freely available (free trial policy). After 30 days an activation key is required.
An activation is available from Carrel Electrade Ltd upon request.
  • Simple and intuitive interface
  • Project tree navigation to design parts
  • Import of Panasonic PLC variables
  • Powerful JavaScript engine for HMI & tag functions
  • Large ready-to-use macro library
  • Multi language support
  • Alarm management and event history
  • Advanced HMI objects: scheduler and event planning, innovative rotating menu, RSS feeds
  • Remote monitoring & control features
  • On-line and off-line simulation
