Generator Controllers
|
|
 |
Generator Control Systems
Manufactured by Datakom
Istanbul - Turkey
|
|
DATAKOM manufacture a wide range of products for energy supply & management.
Focusing on energy quality, reactive compensation, transmission and distribution, network monitoring & reporting.
|
|
|
|

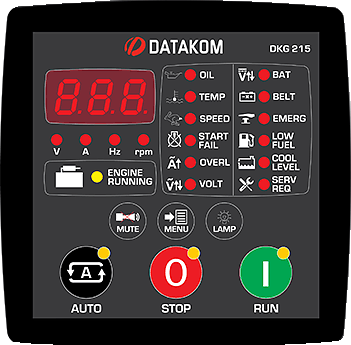

The DKG-215 is a comprehensive generator control unit designed to start & stop the generator set manually from local push buttons or remotely.
Features:
- Generator protection
- Engine monitoring, oil pressure, coolant temperature etc.
- Built in alarms and warnings
- Alternator input 15-300Vac Ph-N, 0-100Hz
- Active power & PF measurement
- Supply 9-33Vdc, 12/24V operation
- High contrast LED display
- Small size, 96x96x53mm
|
|
|

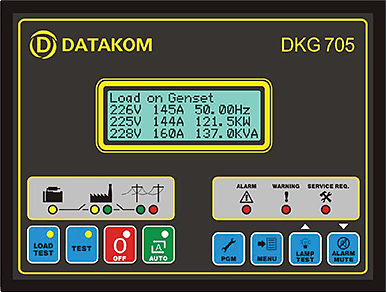

The DKG-705 is a comprehensive automatic mains failure unit for single or dual generator sets operating in standby or parallel with mains modes.
Features:
- Automatic mains failure
- Transfer of load between mains and genset
- J1939 engine monitoring and control port
- Generator protection
- Built in alarms and warnings
- True RMS measurements
- Complete genset power & mains power measurements
- Synchroscope
|
|
|

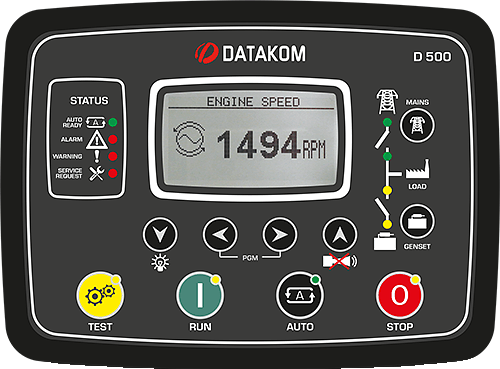

The D-500-GPRS-COMM is a next generation genset control unit combining multi-functionality
& many options for communications.
Functions include:
- (AMF)Automatic mains failure, uninterrupted transfer
- (ATS)Automatic transfer switch, uninterrupted transfer
- Local manual or remote start
- Engine controller
- Wave form display & harmonic analysis of V & I
- 4-band GPRS modem
- Modbus RTU & Modbus TCP/IP
- USB host/device
|
|
|

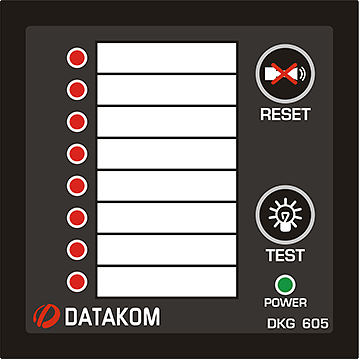

The DKG-605 is a compact 8 channel programmable alarm extension unit used with generator sets.
Programming is done with the DKG-605-P hand terminal unit.
Features:
- Panel mounted 72x72mm
- 8 configurable input channels
- 2 relay outputs, 8 semiconductor outputs
- 44 programmable parameters
|
|
|

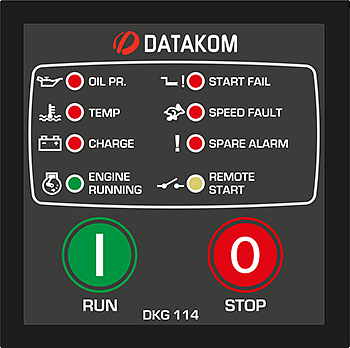

The DKG-114 is a low cost, microprocessor controlled generator control unit
designed to start & stop the genset both manually and remotely.
Features:
- Panel mounted 72x72mm
- Automatic shutdown on fault condition
- High current relay outputs
- Sealed front panel, IP65 protection
- Supply 12V or 24V dc
|
|
|
The DKG-116 is a low cost, comprehensive unit designed to start & stop a
generating set both manually and remotely.
Features:
- Panel mounted 96x48mm
- Generator protection, built in alarms & warnings
- True RMS measurements
- Petrol or diesel generator
- Supply 9-16Vdc
|
|
|

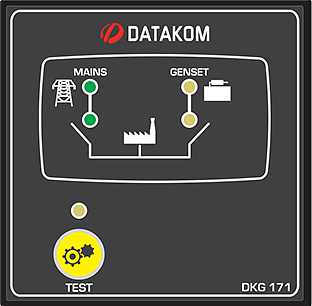

The DKG-171 is a low cost, microprocessor controlled auto transfer switch.
Features:
- Panel mounted 72x72mm
- User adjustable low voltage limit
- Remote start output
- Test button
- Supply 12V or 24V dc
|
|
|

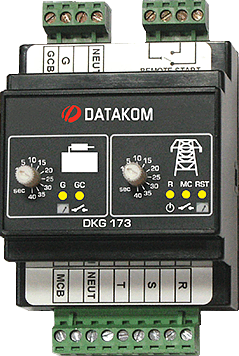

The DKG-173 is a DIN Rail mounted auto transfer switch controller.
The unit monitors 3-phase mains voltages, sends remote start command to the generating set & performs changeover of both generator & mains contactors.
Features:
- DIN Rail mounted
- No DC supply required
- Isolated mains and genset inputs
- 10A/28VDC/250VAC remote start output
|
|
|

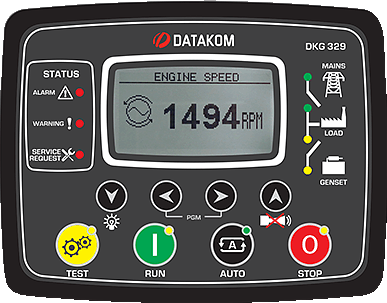

The DKG-329 is designed to monitor 3-phase mains voltages, send remote start command to
generating sets & control the changeover of both generator & mains contactors.
The unit offers an internal synchroscope for uninterrupted transfer in both directions.
Features:
- Automatic contactor control for 2xGEN+1xMAINS
- Automatic genset switching
- True RMS measurements
- Event logging with time stamp and measurements
- GSM SMS message sending on fault
- MODBUS communications
- IP65 front panel protection
|
|
|

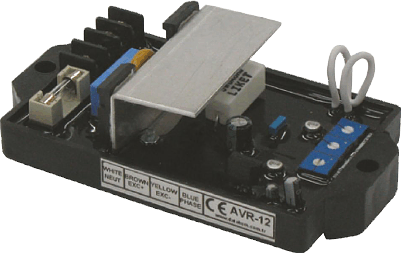

AVR-12 Alternator voltage regulator, 10A
The device operates on 230V phase to neutral single phase.
Features:
- Half-Wave thyristor output
- Voltage adjustment range, 195-265V
- Resin molded design
- Compatible with various types of alternators
|
|
|

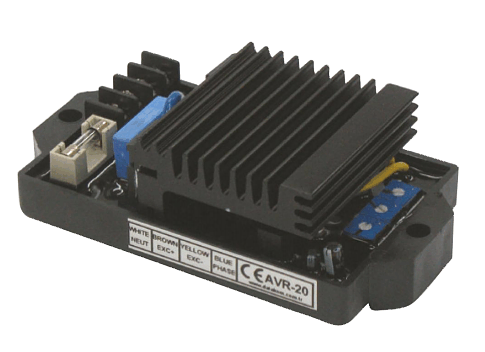

AVR-20 Alternator voltage regulator, 20A
The device operates on 230V phase to neutral single phase.
Features:
- Half-Wave thyristor output
- Voltage adjustment range, 195-265V
- Resin molded design
- Compatible with various types of alternators
|
|
|
Battery Chargers
Manufactured by Datakom
Istanbul - Turkey
|
|
|
|

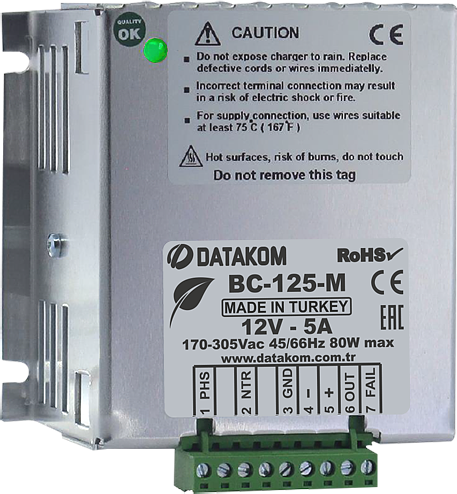

The BC-125-M is a high effiency two stage lead acid battery charger.
Output 12V 5A, supply 107-305Vac.
These chargers a designed to be very robust having overload, short circuit, high temperature & reverse battery protection.
Features:
- High efficiency, over 90%
- Wide operating supply range, 170-305Vac
- LED status indicator
- Low power consumption at no load
- Analog output for current measurement
- Operating temperature -30°C to +80°C
- Small size, 106mm(W) x 115mm(H) x 57mm(D)
|
|
|

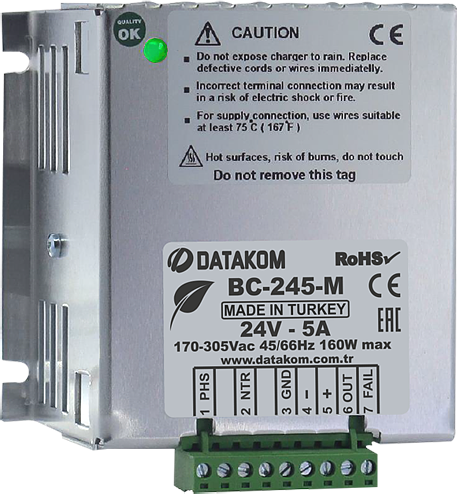

The BC-245-M is a high effiency two stage lead acid battery charger.
Output 24V 5A, supply 107-305Vac.
These chargers a designed to be very robust having overload, short circuit, high temperature & reverse battery protection.
Features:
- High efficiency, over 90%
- Wide operating supply range, 170-305Vac
- LED status indicator
- Low power consumption at no load
- Analog output for current measurement
- Operating temperature -30°C to +80°C
- Small size, 106mm(W) x 115mm(H) x 57mm(D)
|
|
|
|
