Data Loggers
|
 |
Data Logger
Manufactured by akYtec GmbH Hanover Germany
|
|
|

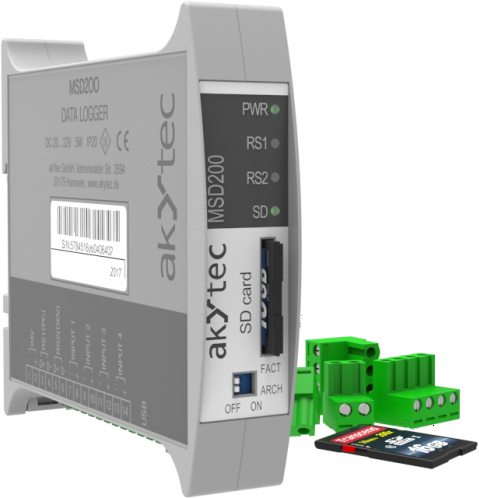

MSD200 Data Logger
DIN rail mounted, 22.5mm wide 120mm high.
- Up to 64 channels
- Logging time 1 to 65535s
- Four configurable analog inputs (4-20 mA, 0-20 mA or 0-5 mA)
- Sampling 100ms
- 12 bit resolution
- Accuracy 1%
- Two RS485 interfaces, Modbus RTU or ASCII
- SD card storage up to 32GB, FAT32
- Configuration and data reading through front panel USB port
- Supply 24Vdc (20-32V) 5W
|
|
| |
|
 |

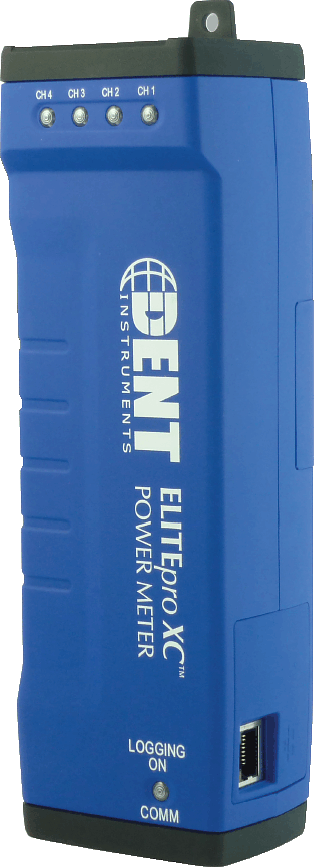

ELITEpro XC™ Energy Logger
The Next Generation Energy Datalogger from DENT Instruments
|
 |
The ELITEpro XC™ is a complete solution for pinpointing electric usage and quantifying energy usage.
It is capable of measuring, storing and analyzing electrical consumption data derived from the current & voltage inputs.

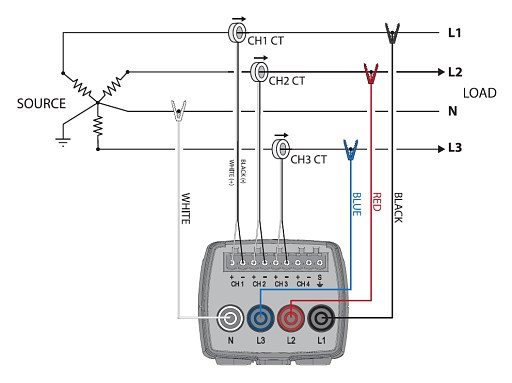

The ELITEpro XC uses direct connections to each phase of the voltage and various interchangeable CT options such as split-core CTs or flexible RoCoils to monitor current on each phase.
These meters can capture kWh/kW energy and demand data as well as virtually all relevant energy parameters for diagnostic and monitoring on 3-phase or single phase circuits.
Electrical load diagnostic parameters such as power factor are captured in addition to energy and demand values.
Additional analogue inputs for voltage or current are available to record data from industrial process or the environment.
|
- Single phase or three phase loads, ac or dc up to 600V.
- Measures up to 4 currents from 0-6000A ac only.
- Analogue inputs, configurable ranges for voltage (0-15Vdc) or current (0 or 4-20mA).
- Line powered, no need for batteries or external power source.
- User selectable recording intervals down to 1 second.
- 16MB non-volatile memory standard.
- Better than 1% accuracy, typically <0.2%.
- Fast USB connection & Ethernet port as standard.
- Simple but powerful Windows based ELOG™ software package for set up, data retrieval and analysis.
- Rugged, compact case.
|
|
|
Third-Generation
SMARTlogger™ Time-of_Use Monitors
|
 |
The SMARTlogger series of instruments are designed to monitor on-off status, time of use and total on time.
Models are available for lighting systems, motors, relays and switches.
Virtually any electric load.
The non-contact monitoring makes installation simple.
All SMARTloggers use SMARTware™ Windows based software that makes it easy to analyse and visually present monitored data.
|
SMARTlogger - Features
- INSTANT INFORMATION: 5 digit LCD shows total on time, percent on time
- SMALLER: 1/3 the size of previous loggers 63x38x19mm (2.5"x1.5"x0.75")
- FASTER: USB communications, download 8000 records in less then 7 seconds
- LONG LIFE: 5+ year battery life, user replaceable battery
- STORAGE: Capacity for 8000 records
- RELIABLE: Leading the industry with a 3 year warranty
- NON_INTRUSIVE MONITORING: No wires to connect or electricians required
- EASIER: No PC required for field operation
|
| SMARTLogger - Types |
 |
LIGHTINGlogger™ - Internal photo-sensor
For monitoring lighting on/off and on time |
|
CONTACTlogger™ - External switch or relay
For monitoring on/off signals |
| Basic Specifications: |
| Display | 5 digit LCD showing total on time, percent on, annunciator |
| Time Stamps | Month, day, year and hour, minute, second |
| Time Resolution | One second |
| Sampling Rate | One per second(1Hz) |
| Data Analysis | Statistics, summaries, graphs and data export using SMARTware |
| Memory | 8000 records, ring memory plus separate on time totaliser |
| Communication | USB with SMARTlogger communications cable |
| Sensitivity | LIGHTlogger - Adjustable
CONTACTlogger - Dry contacts |
| Battery Life | 5 years |
|
|
|
