Crompton Instruments Panel Meters

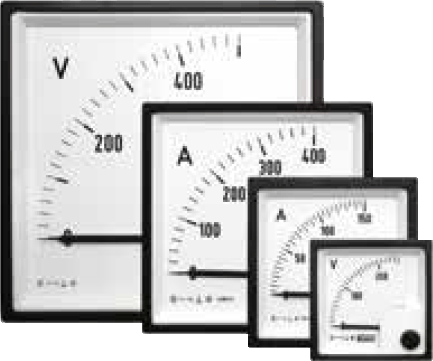

Moving Iron Ammeters and Voltmeters
Supplied by Crompton Instruments
High quality DIN standard switchboard instruments with slide-in scales
242-756
242-756G
242-xxxx 48x48mm Ammeters & voltmeters
242-026G-xA Direct connect ammeters with 6x overscale:
  • 0-1A overscaled to 6A
  • 0-5A overscaled to 30A
  • 0-10A overscaled to 60A
  • 0-15A overscaled to 90A
CT operated, 1A & 5A, standard scales from 40/5A up to 3000A/5A

Voltmeters 242-75VG-xV:
  • 0-150Vac
  • 0-300Vac
  • 0-500Vac
243-026
243-026G
243-xxxx 72x72mm Ammeters & voltmeters
243-026G-xA Direct connect ammeters with 6x overscale:
  • 0-1A overscaled to 6A
  • 0-5A overscaled to 30A
  • 0-10A overscaled to 60A
  • 0-15A overscaled to 90A
  • 0-20A overscaled to 120A
  • 0-30A overscaled to 180A
  • 0-40A overscaled to 240A
  • 0-60A overscaled to 360A
  • 0-100A overscaled to 600A
CT operated, 1A & 5A, standard scales from 40/5A up to 3000A/5A

Voltmeters 243-02VG-xV:
  • 0-150Vac
  • 0-300Vac
  • 0-500Vac
240 Series
Data sheet
244-xxxx 96x96mm Ammeters & voltmeters
244-026G-xA Direct connect ammeters with 6x overscale:
  • 0-1A overscaled to 6A
  • 0-5A overscaled to 30A
  • 0-10A overscaled to 60A
  • 0-15A overscaled to 90A
  • 0-20A overscaled to 120A
  • 0-30A overscaled to 180A
  • 0-40A overscaled to 240A
  • 0-60A overscaled to 360A
  • 0-100A overscaled to 600A
CT operated, 1A & 5A, standard scales from 40/5A up to 3000A/5A

Voltmeters 244-02VG-xV:
  • 0-150Vac
  • 0-300Vac
  • 0-500Vac

244-16AG
Model 243-16AG & 244-16AG
Thermal Demand Ammeters
72x72mm & 96x96mm 90° quadrant scale
Class 3 accuracy
15 minute period
5A Input, burden approx. 2VA
20% overscaled
Standard scales from 40/5A to 3000/5A

244-16CG
Model 243-16CG & 244-16CG
Combined Thermal Demand & Moving Iron Ammeters
72x72mm & 96x96mm 90° quadrant scale
Class 3 accuracy
15 minute period
5A Input, burden approx. 2VA
20% overscaled
Standard scales from 40/5A to 3000/5A
