AccuEnergy Multifunction Electricity Meters, kWh Meters,
AcuMesh Wireless RS485 Network
& AcuLink 710 Data Acquisition Server
AccuEnergy
AcuDC 240 Series
Brochure
Manual
AcuDC 240 Series
For monitoring & control of DC power systems
  • DIN 72x72 standard format
  • Class 0.2 voltage & current, Class 0.5 power & energy
  • Optional MODBUS® RTU via RS485 port
  • Optional data logging
  • Free Acuview software for real time monitoring & data logging
AcuDC 243 kit

Acuvim II
Data sheet
Acuvim II Series
Quality engineered sub-meters for high performance
power & energy monitoring
  • DIN 96x96 standard format
  • 4 different models for different applications
  • Class 0.2
  • Built-in MODBUS® RTU and DNP 3.0 protocols via RS485 port
  • Optional plug-in modules for BACNET, Ethernet, Profibus
  • Optional data logging, time-of-use and power quality monitoring
  • Free Acuview software for real time monitoring & data logging
Acuvim II modules

Acuvim L
Data sheet
Acuvim L Series
Economical three phase multifunction panel meters
  • DIN 96x96 standard format
  • 6 different models for different applications
  • LCD display with back lighting, 3 lines plus legends
  • Built-in MODBUS® RTU on some models
  • Optional digital/analog I/O or PROFIBUS on some models
  • Optional data logging, time-of-use and power quality monitoring
  • Free Acuview software for real time monitoring & data logging
Acuvim modules

EV390 Series
Data sheet
User manual
EV390 Series
Economy multifunction power meters
  • DIN 96x96 standard format
  • Bi-directional Energy Metering
  • RS485 port built-in with Modbus® RTU
  • Optional 4-20mA analog transducer output
  • Optional energy pulse output
  • Optional over/under limit alarm-triggered relay output

AcrRev 1200
AcuRev 1203
AcuRev 1203 Single Phase Energy Meter
  • Direct connect up to 80A
  • Accuracy 0.5%
  • Meters import/export kWh, reactive energy & VA demand energy
  • Real time metering of V, I, P, Q, S, PF & F
  • MODBUS® RTU comms

Data sheet

AcrRev 1303
AcuRev 1303
AcuRev 1303 3-Phase Energy Meter
  • Direct connect up to 80A
  • Accuracy 0.5%
  • Meters import/export kWh, reactive energy & VA demand energy
  • Real time metering of V, I, P, Q, S, PF & F
  • MODBUS® RTU comms

Data sheet

AcrRev 1312
AcuRev 1312
AcuRev 1312 3-Phase Energy Meter
  • 1A/5A selectable or 333mV CT input options
  • Accuracy 0.5%
  • Meters import/export kWh, reactive energy & VA demand energy
  • Real time metering of V, I, P, Q, S, PF & F
  • Optional MODBUS® RTU comms

Data sheet

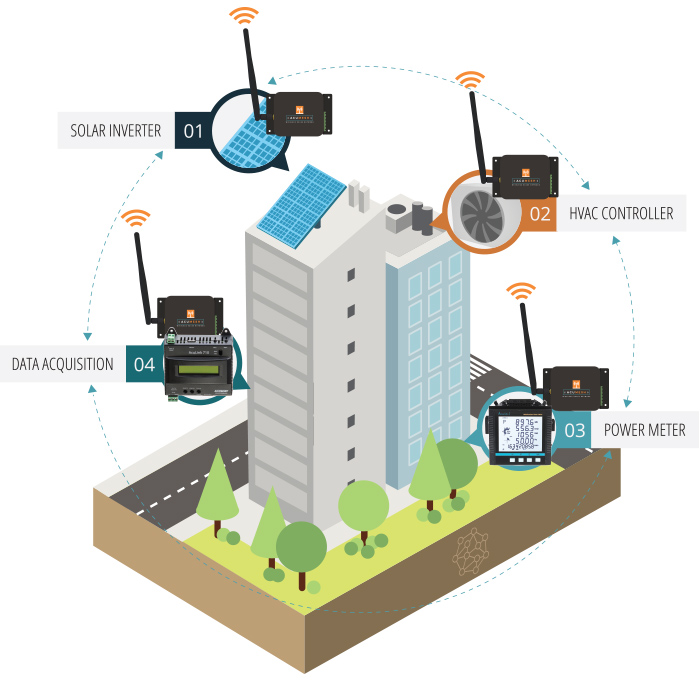

AccuEnergy AcuMesh - Wireless RS485 Network

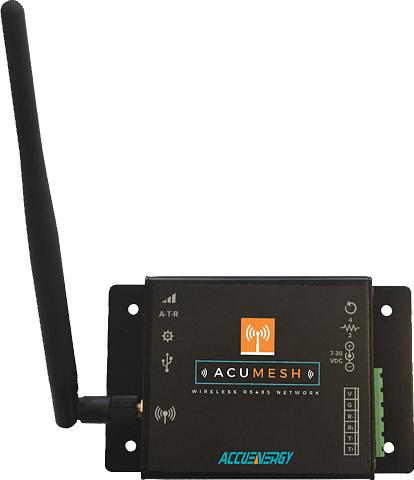

AcuMesh transceiver
Brochure
Manual
  • Spread spectrum frequency hopping technology
  • All devices are connected automatically at power up
  • Compatible with devices running any protocol via RS485
  • Highly secure 128 bit AES communication
  • Long range, 300m indoors & up to 6.5km outdoors
  • "Mesh" network enables longer range communications
AcuMesh

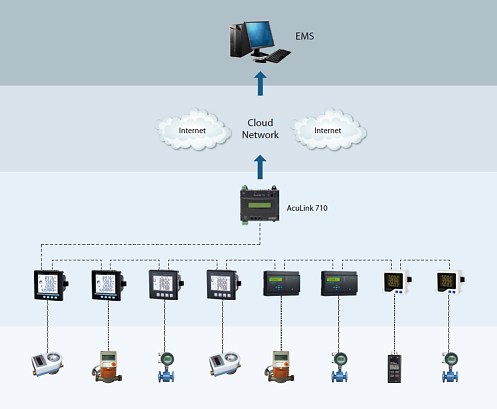

AccuEnergy AcuLink - Data Acquisition Server
AcuLink 710
Brochure
Manual
  • Access energy information from local or remote sites
  • View real time performance data
  • Track energy use and peak demand
  • Gateway to RS485 Modbus®
  • RJ45 10/100 Ethernet
  • Protocols include Modbus RTU/TCP, TCP/IP, PPP. HTTP/MTML, FTP, NTP, XML, SNMP-Trap
AcuLink 710
